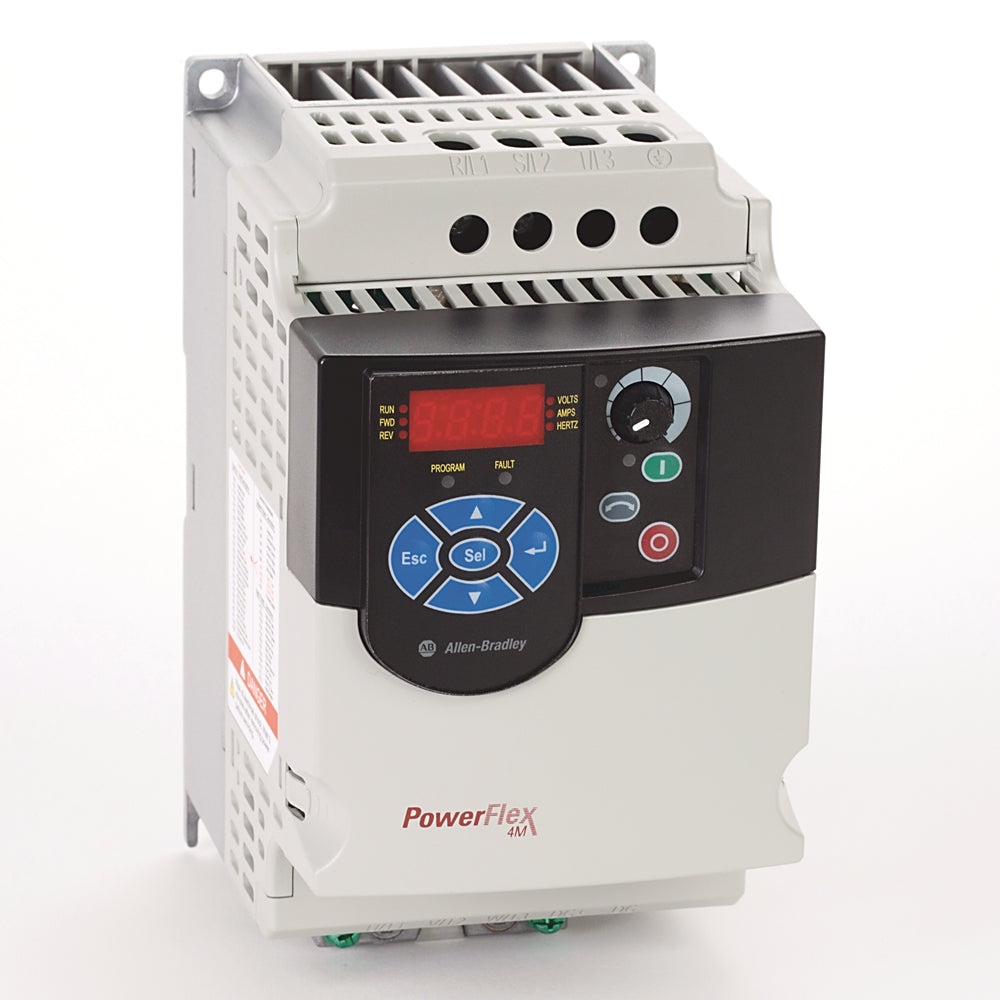

Allen-Bradley 22F-D8P7N103 PowerFlex 4M-3.7 kW 5HP AC Drive 22FD8P7N103

Description:

The Allen-Bradley 22F-D8P7N103 PowerFlex 4M 3.7 kW (5 HP) AC Drive is used in variable frequency drive systems to control the speed and torque of three-phase AC motors in industrial automation applications. It provides adjustable motor speed control, energy efficiency, and reliable performance for equipment requiring precise motor operation. Commonly installed in conveyor systems, fans and blowers, pumps, mixers, and other motor-driven machinery, this drive supports flexible motor control within compact industrial control panels. Maintenance teams and system integrators use this drive for equipment repair, system upgrades, automation retrofits, and replacement of existing PowerFlex motor drives.

Applications:

The Allen-Bradley 22F-D8P7N103 PowerFlex 4M AC drive is widely used in industrial motor control systems where adjustable speed control is required. It is commonly applied in conveyor and material handling systems, pump and fan control, mixers, packaging equipment, and general manufacturing machinery where reliable motor speed regulation improves process efficiency and equipment performance.

Technical Specifications:

• Manufacturer Part Number (MPN): 22F-D8P7N103
• Product Type: Adjustable Frequency AC Drive
• Series: PowerFlex 4M
• Motor Power Rating: 3.7 kW (5 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Output Current: 8.7 A
• Frequency Range: 0–400 Hz
• Control Method: Volts/Hertz (V/Hz) Control
• Enclosure Rating: IP20 (Open Type)
• Communication Interface: Optional communication modules
• Mounting Type: Panel Mount
• Operating Temperature: -10 to 50 °C (14 to 122 °F)

Common Replacements:

• Allen-Bradley 22F-D8P7N113
• Allen-Bradley 25A-D6P0N104
• Allen-Bradley 22B-D6P0N104
