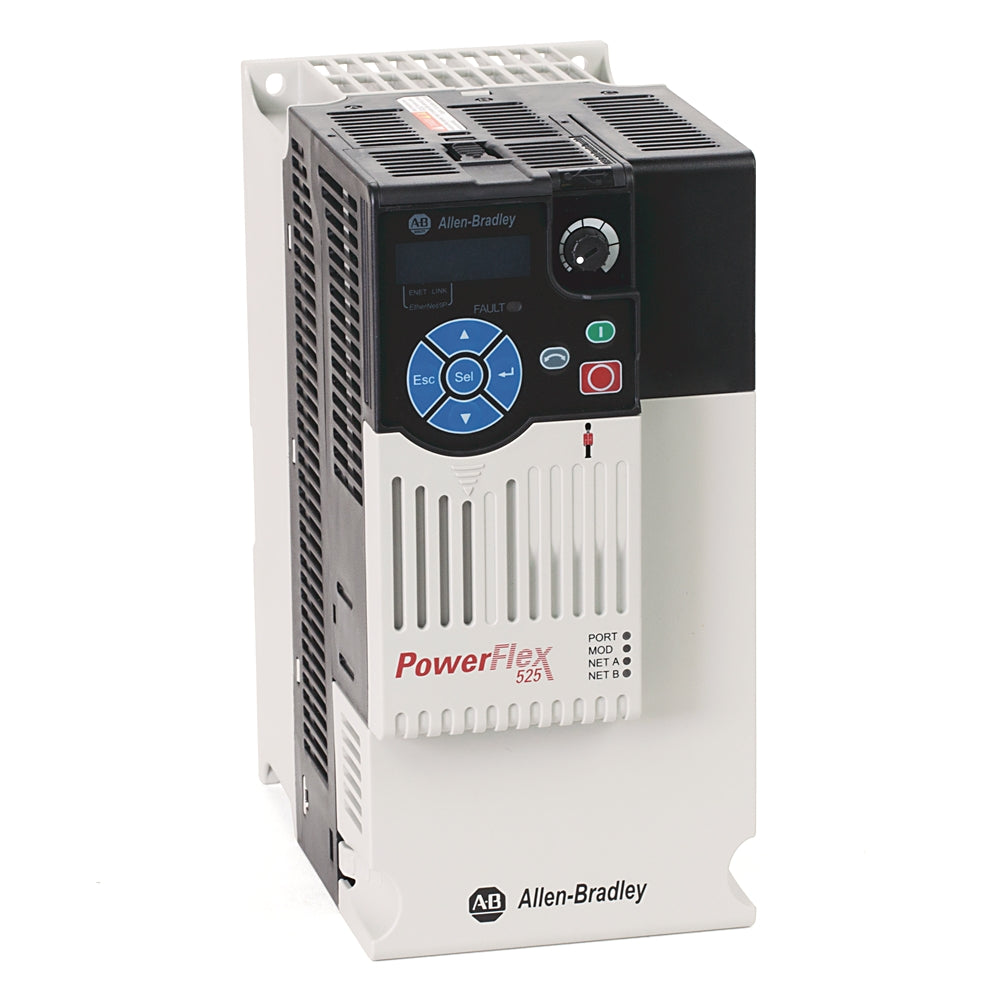

Allen-Bradley 25B-D013N104 PowerFlex 525 AC Drive 5.5kW 7.5Hp 25BD013N104

Description:

The Allen-Bradley 25B-D013N104 is a PowerFlex 525 variable frequency AC drive designed for precise motor control in industrial environments. With support for 480V three-phase input and 13 A output, it is capable of driving motors up to 7.5 HP. This drive includes embedded EtherNet/IP communication, Safe Torque-Off (STO) functionality, and a compact design that allows easy installation and integration into a wide range of automation systems.

TECHNICAL SPECIFICATIONS:

Manufacturer: Allen-Bradley
Model Number: 25B-D013N104
Series: PowerFlex 525
Input Voltage: 323–528 VAC, 3-phase (nominal 480 VAC)
Output Current: 13 A
Motor Power: 7.5 HP (5.5 kW)
Frequency Range: 0–500 Hz
Control Methods: V/Hz, Sensorless Vector, Economizer, PM Motor Control
Enclosure Type: IP20, Open Type (optional NEMA/UL Type 1 cover)
Frame Size: C
Communication: Embedded EtherNet/IP, USB, RS-485
Safety Feature: Safe Torque-Off (STO), SIL2 / PLd Cat 3
Digital Inputs: 7 (sink/source)
Digital Outputs: 2
Relay Output: 1
Analog Inputs: 2 (0–10V or 4–20mA)
Analog Output: 1 (0–10V or 4–20mA)
Cooling: Integrated heatsink (optional fan available)
Mounting: Panel or DIN rail
Programming Interface: USB, LCD keypad, CCW software
Power Factor: 0.98
Dimensions (H x W x D): 8.66 x 4.29 x 7.24 in (220 x 109 x 184 mm)
Weight: Approx. 5.7 lbs (2.59 kg)
