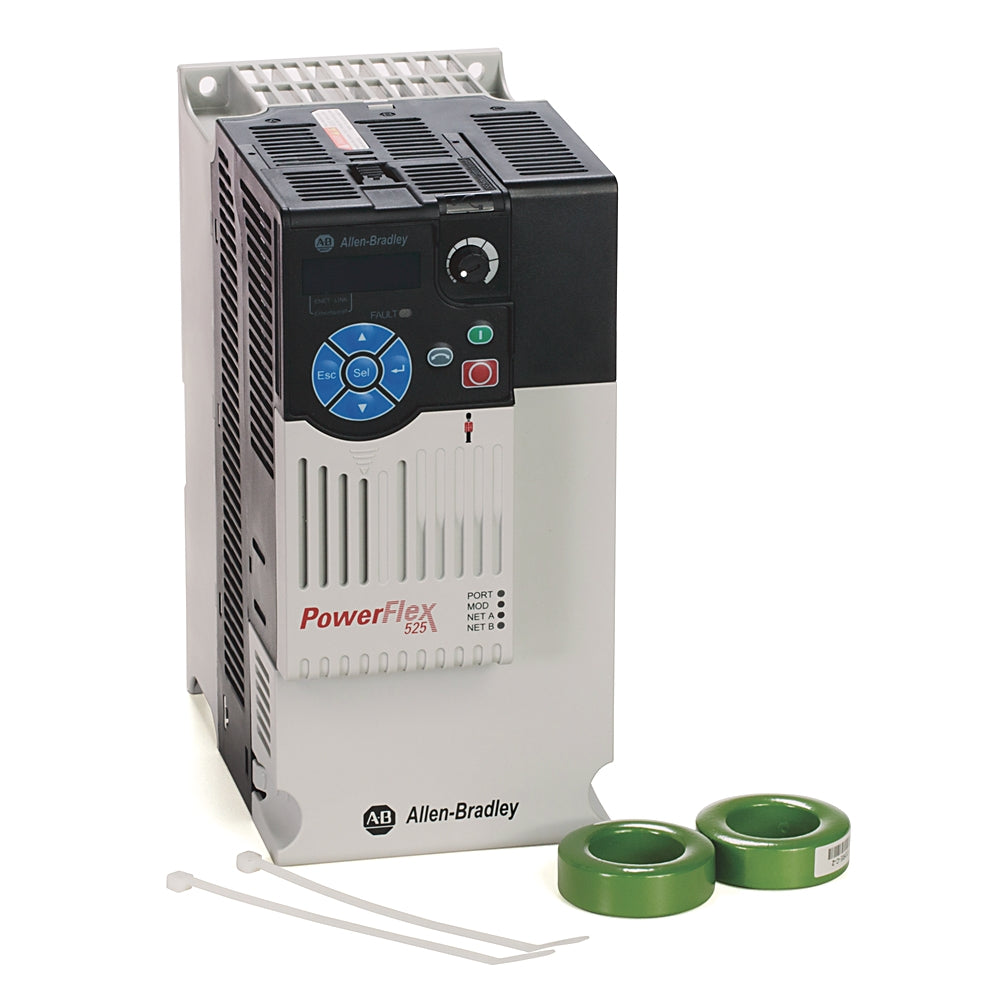

Allen-Bradley 25B-D013N114 525 AC Drive 7.5 HP SEALED 25BD013N114

Description:

The Allen-Bradley 25B-D013N114 PowerFlex 525 AC Drive is a variable frequency drive designed for industrial motor control systems requiring adjustable speed, torque control, and energy-efficient operation. Operating on 380–480V three-phase input, this drive delivers 5.5 kW (7.5 HP) output with a rated current of approximately 13 A for medium-duty motor applications. Maintenance teams, OEM machine builders, and system integrators use this drive for equipment repairs, control panel retrofits, automation upgrades, and replacement of existing VFD units in industrial motor control systems.

Applications:

The PowerFlex 525 AC drive is widely used in industrial automation systems to control three-phase induction and permanent magnet motors. Typical installations include conveyor systems, packaging machinery, pumps, fans, compressors, and material handling equipment where reliable motor speed control and network integration are required. Its embedded EtherNet/IP communication capability supports seamless integration into PLC-based control systems and distributed automation networks.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Part Number: 25B-D013N114
• Series: PowerFlex 525
• Rated Output Current: 13 A
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Power Rating: 5.5 kW (7.5 HP)
• Enclosure Type: IP20 (Open Type / sealed panel installation)
• Frame Size: Frame C
• Control Method: V/Hz Control, Sensorless Vector Control
• Integrated Communication: EtherNet/IP
• Frequency Rating: 50–60 Hz
• User Interface: Integral keypad with LED display

Common Replacements:

• Allen-Bradley 25B-D013N104
• Allen-Bradley 25B-D017N114
• Allen-Bradley 22B-D012N104
