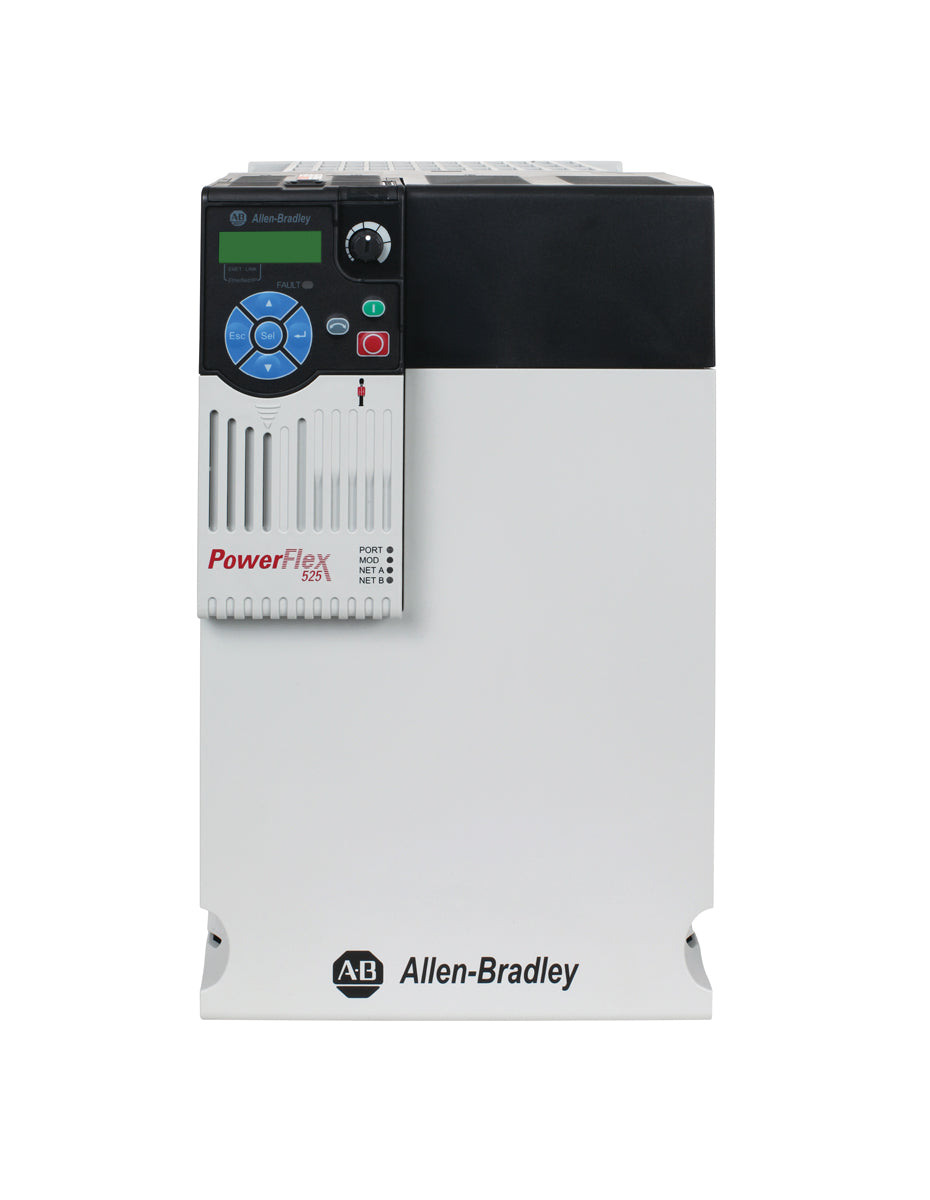

Allen-Bradley 25B-D037N114 PowerFlex 525 AC Drive, 10 HP, 240V, 37A, Frame D 25BD037N114

The Allen-Bradley 25B-D037N114 is a PowerFlex 525 AC drive designed for high-performance motor control in industrial automation environments. With a 10 HP rating and 37A output, this drive offers advanced control features, built-in EtherNet/IP communications, and Safe Torque-Off (STO) functionality. Its compact footprint, flexible programming options, and high-efficiency operation make it ideal for applications such as conveyors, mixers, pumps, and process equipment.

TECHNICAL SPECIFICATIONS:

Manufacturer: Allen-Bradley / Rockwell Automation
Series: PowerFlex 525
Catalog Number: 25B-D037N114
Input Voltage: 240V AC
Input Phase: Three-phase
Output Current: 37.0 A
Horsepower: 10 HP (7.5 kW)
Frame Size: D
Control Methods: V/Hz, Sensorless Vector, Economizer Mode
Frequency Range: 0–500 Hz
Enclosure Type: Open Type (IP20); optional NEMA/UL Type 1 kit available
Integrated Communications: EtherNet/IP, RS-485 (DSI)
Safety Features: Safe Torque-Off (STO) built-in
Mounting: Panel mount
Programming Options: USB port (standard), optional LCD HIM keypad
Software Support: Connected Components Workbench (CCW)
Dimensions (HxWxD): Approx. 11.02 x 5.12 x 7.48 in (280 x 130 x 190 mm)
Certifications: UL, cUL, CE, TUV, RoHS, RCM
