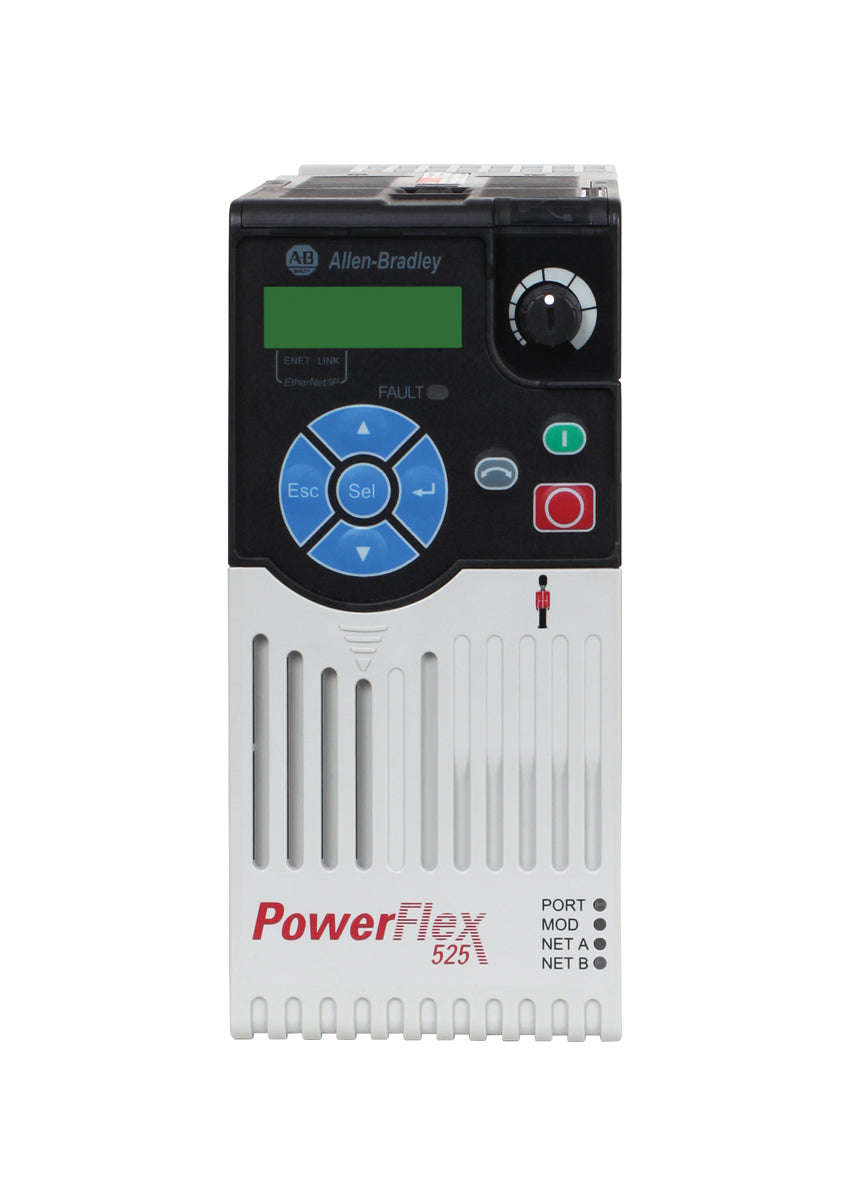

Allen-Bradley 25B-D1P4N114 PowerFlex 525 0.4kW 0.5Hp AC Drive 25BD1P4N114

Description:

The Allen-Bradley 25B-D1P4N114 PowerFlex 525 0.4kW 0.5HP AC Drive (25BD1P4N114) is used in industrial motor control systems to regulate the speed and torque of three-phase AC motors. Commonly installed in small conveyor systems, pumps, fans, mixers, and compact automation equipment where precise low-horsepower motor control is required. Maintenance teams, OEMs, and system integrators use this drive for machine builds, panel integration, equipment replacement, and improving energy efficiency in industrial applications.

Applications:

The Allen-Bradley 25B-D1P4N114 PowerFlex 525 drive is widely used in manufacturing plants, HVAC systems, water treatment facilities, and light industrial machinery. It provides adjustable speed control for fractional and low-horsepower motors, helping reduce mechanical wear, improve process control, and optimize energy consumption in compact automation systems.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part number: 25B-D1P4N114
• Product series: PowerFlex 525
• Product type: Variable frequency AC drive
• Rated power: 0.4 kW / 0.5 HP
• Input voltage: 240 V AC
• Output current: 1.4 A
• Phase: Three-phase
• Control method: V/Hz and sensorless vector control
• Frequency range: 0–400 Hz
• Enclosure rating: IP20 / NEMA Type Open
• Mounting: Panel mount

Common Replacements:

• Allen-Bradley 25A-D1P4N104
• Allen-Bradley 22F-D2P3N113
• Siemens 6SL3210-1KE11-8UF1
