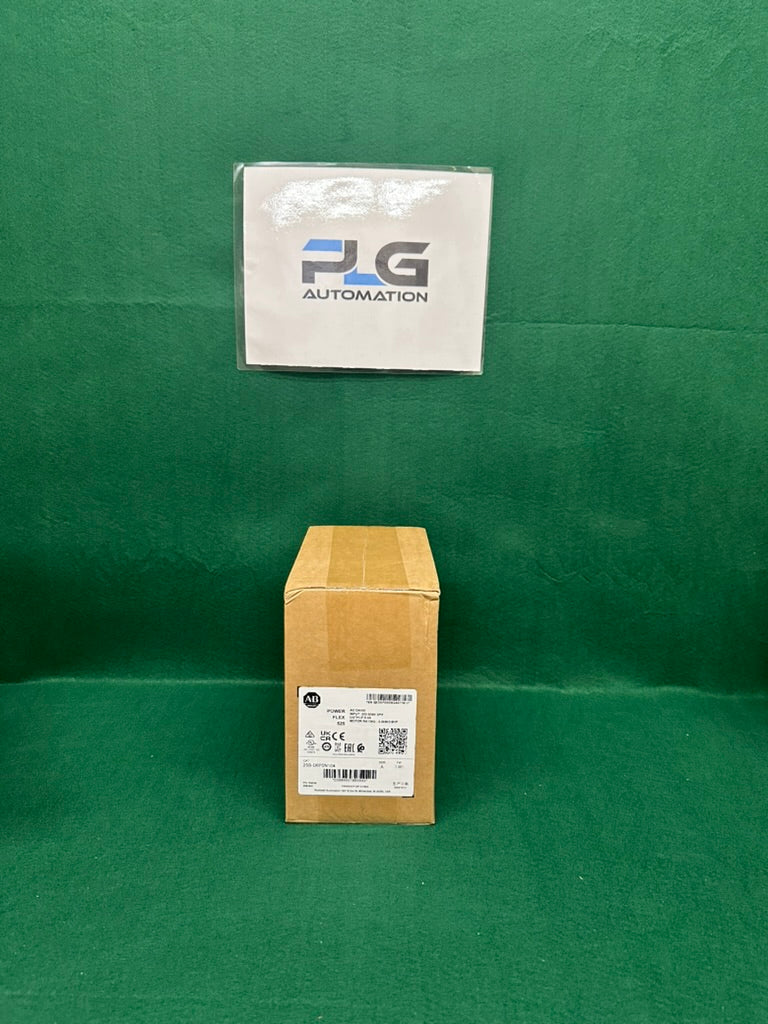

Allen-Bradley 25B-D6P0N104 525 AC DRIVE 3HP + 25-JBAA

Description:

The Allen-Bradley 25B-D6P0N104 is a PowerFlex 525 variable frequency drive (VFD) designed for controlling three-phase induction motors in a wide range of industrial applications. This model delivers 2.2 kW (3 HP) of output power at 480V AC with a maximum output current of 6.0 amps. Featuring embedded EtherNet/IP and DSI communication ports, compact design, and flexible mounting options, the 25B-D6P0N104 is ideal for conveyors, pumps, fans, and mixers. Its modular construction and advanced motor control algorithms enable high performance and simplified integration into modern control systems.

TECHNICAL SPECIFICATIONS:

Model: 25B-D6P0N104
Series: PowerFlex 525
Input Voltage: 3-phase, 380–480V AC
Output Voltage: 0–input voltage
Rated Output Power: 2.2 kW (3 HP)
Rated Output Current: 6.0 A
Frequency Range: 0–599 Hz
Control Method: V/Hz, Sensorless Vector Control, Economizer mode
Integrated Communication: EtherNet/IP, DSI
EMC Filter: Internal
Enclosure Rating: IP20, NEMA Open Type
Mounting: Panel or DIN rail mount
Operator Interface: Integral keypad with LCD display
I/O: 7 digital inputs, 2 analog inputs, 1 analog output, 1 relay output
Operating Temperature: –10°C to +50°C (up to +70°C with derating)
Dimensions: 72 mm x 260 mm x 172 mm (W x H x D)
Weight: Approx. 2.1 kg (4.6 lbs)
