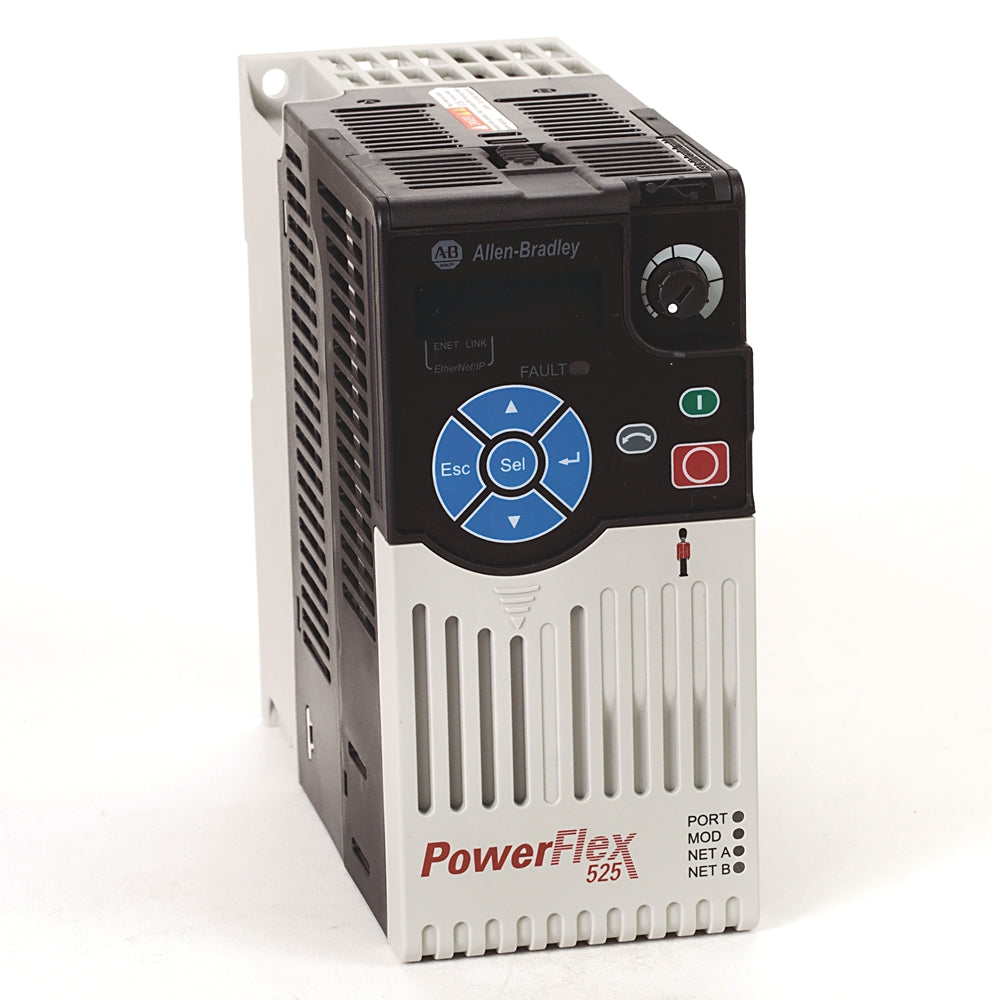

Allen-Bradley 25B-D6P0N104 525 2.2kW (3Hp) AC Drive 25BD6P0N104

Description:

The Allen-Bradley 25B-D6P0N104 PowerFlex 525 AC Drive is a variable frequency drive designed for industrial motor control systems requiring adjustable speed, torque regulation, and energy optimization. Operating on 380–480V three-phase input, this 2.2 kW (3 HP) drive provides reliable performance for conveyors, pumps, fans, and automated machinery in manufacturing environments. Maintenance teams, OEMs, and system integrators use this drive for equipment repair, control panel retrofits, production line expansion, and replacement of existing VFD units in PLC-based automation systems.

Applications:

The Allen-Bradley PowerFlex 525 AC drive is widely used to control three-phase induction and permanent magnet motors in industrial automation settings. Typical applications include packaging machines, material handling systems, HVAC equipment, water and wastewater processing units, and small production machinery where consistent speed control and integrated network communication are required. Its compact footprint and embedded EtherNet/IP capability support both standalone installations and distributed control architectures.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Part Number: 25B-D6P0N104
• Series: PowerFlex 525
• Rated Output Current: 6.0 A
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Power Rating: 2.2 kW (3 HP) Normal Duty
• Control Method: V/Hz Control, Sensorless Vector Control
• Integrated Communication: EtherNet/IP
• Enclosure Rating: IP20 (Open Type)
• Mounting Type: Panel mount
• Output Frequency Range: 0–500 Hz
• Ambient Operating Temperature: 0°C to 50°C (without derating)

Common Replacements:

• Allen-Bradley 25B-D4P0N104
• Allen-Bradley 25B-D010N104
• Allen-Bradley 22B-D6P0N104
