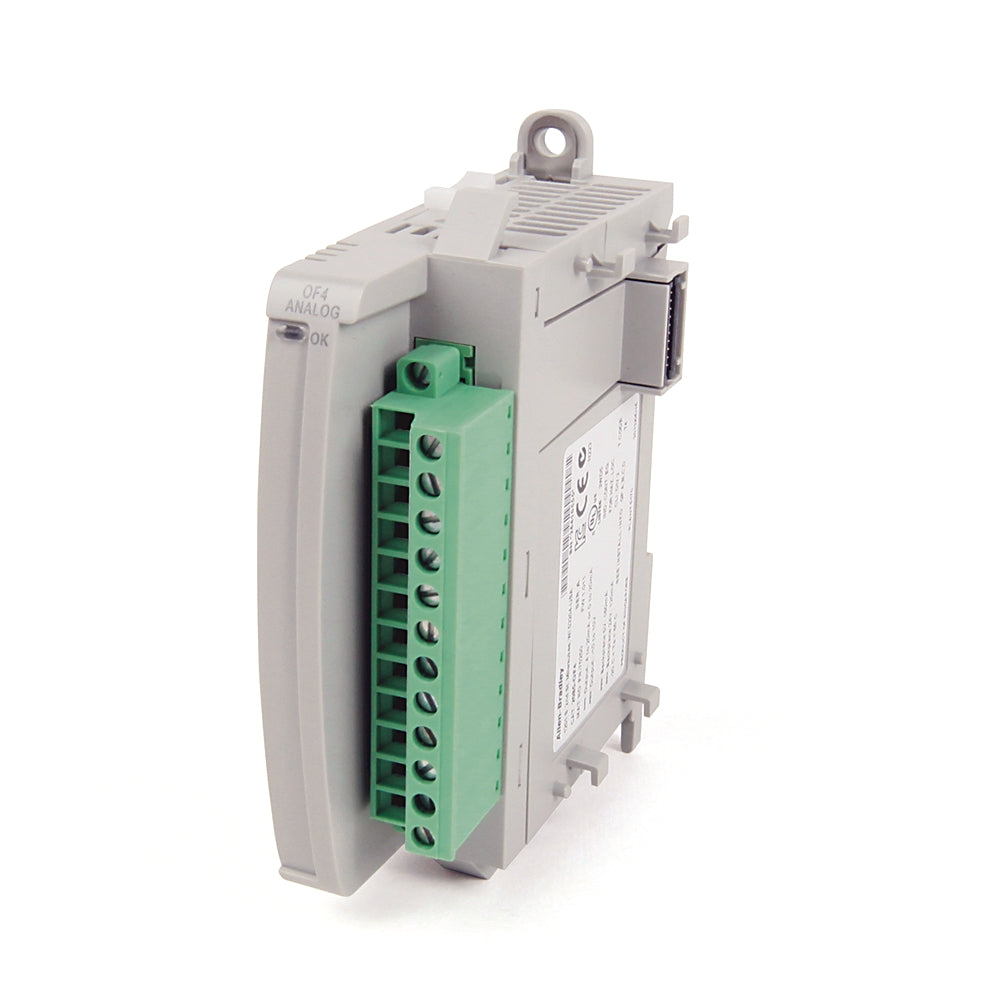

Allen-Bradley 4 Point Analog Output Module 2085-OF4

Description:

2085OF4 OUTPUT MODULE ANALOG VOLTAGE/CURRENT 4 CHANNELS BIPOLAR 10 V 0-20 MA FOR USE W/ MICRO850 SERIES +65 DEGREE MAX The Allen-Bradley 2085-OF4 is a high-performance analog output module from the CompactLogix 5370 series, designed to provide four channels of voltage or current outputs for precise control in automation systems. This module supports a range of output types, including 0-10V DC and 4-20mA, making it versatile for various industrial applications. The 2085-OF4 features high-resolution outputs and fast response times, ensuring reliable performance and integration with CompactLogix controllers for accurate control and monitoring.

Technical Specifications:

• Number of Outputs: 4 channels
• Output Types:
• Voltage: 0-10V DC
• Current: 4-20mA
• Output Resolution: 16 bits
• Output Accuracy:
• Voltage: ±0.1% of full scale
• Current: ±0.1% of full scale
• Power Requirements:
• 0.5 A at 24V DC (from backplane)
• 2.5 W power dissipation
• Isolation: 500V AC between output channels and backplane
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Dimensions: 3.8 x 2.8 x 4.0 in (96 x 71 x 102 mm)
• Weight: 0.35 kg (0.77 lbs)
• Certifications: UL, CE, and cULus certified
• Application: Ideal for providing precise analog control signals in CompactLogix 5370 automation systems
