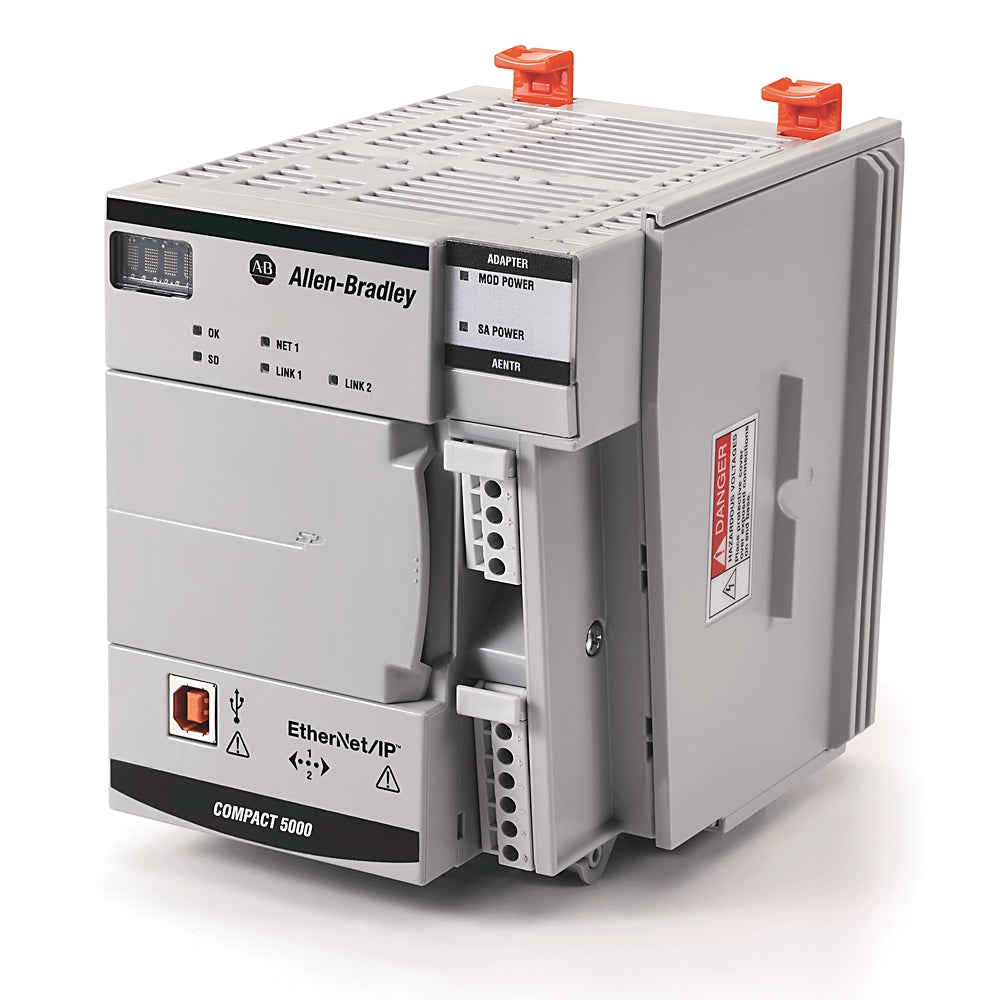

Allen-Bradley 5069-AENTR EtherNet/IP Adapter 5069AENTR

DESCRIPTION
The Allen-Bradley 5069-AENTR is a Compact I/O Ethernet/IP adapter module designed for use with CompactLogix 5380 and ControlLogix 5580 systems. Featuring dual Ethernet ports and support for Device Level Ring (DLR) topologies, it provides fast and reliable communication between controllers and distributed I/O. The module is ideal for high-performance, time-sensitive industrial automation applications requiring redundancy and flexible network integration.

TECHNICAL SPECIFICATIONS
Model Number: 5069-AENTR
Series: Compact I/O
Network Type: EtherNet/IP
Ports: 2 x RJ45 10/100/1000 Mbps Ethernet (support DLR and linear topologies)
Redundancy: Yes – supports DLR for ring redundancy
Power Supply: 18–32V DC
Backplane Current: 1.0 A at 3.3V DC
Max I/O Modules: Supports up to 31 local I/O modules
Supported Controllers: CompactLogix 5380, ControlLogix 5580
Status Indicators: Module status, network activity, link, and power LEDs
Mounting: DIN rail
Dimensions: Approx. 118 x 35 x 105 mm (H x W x D)
Weight: Approx. 200 g
Environmental Ratings:
– Operating Temperature: 0°C to 60°C
– Storage Temperature: -40°C to 85°C
– Relative Humidity: 5% to 95% non-condensing
Certifications: UL, cUL, CE, RoHS, ATEX, KC
Manufacturer: Rockwell Automation / Allen-Bradley
