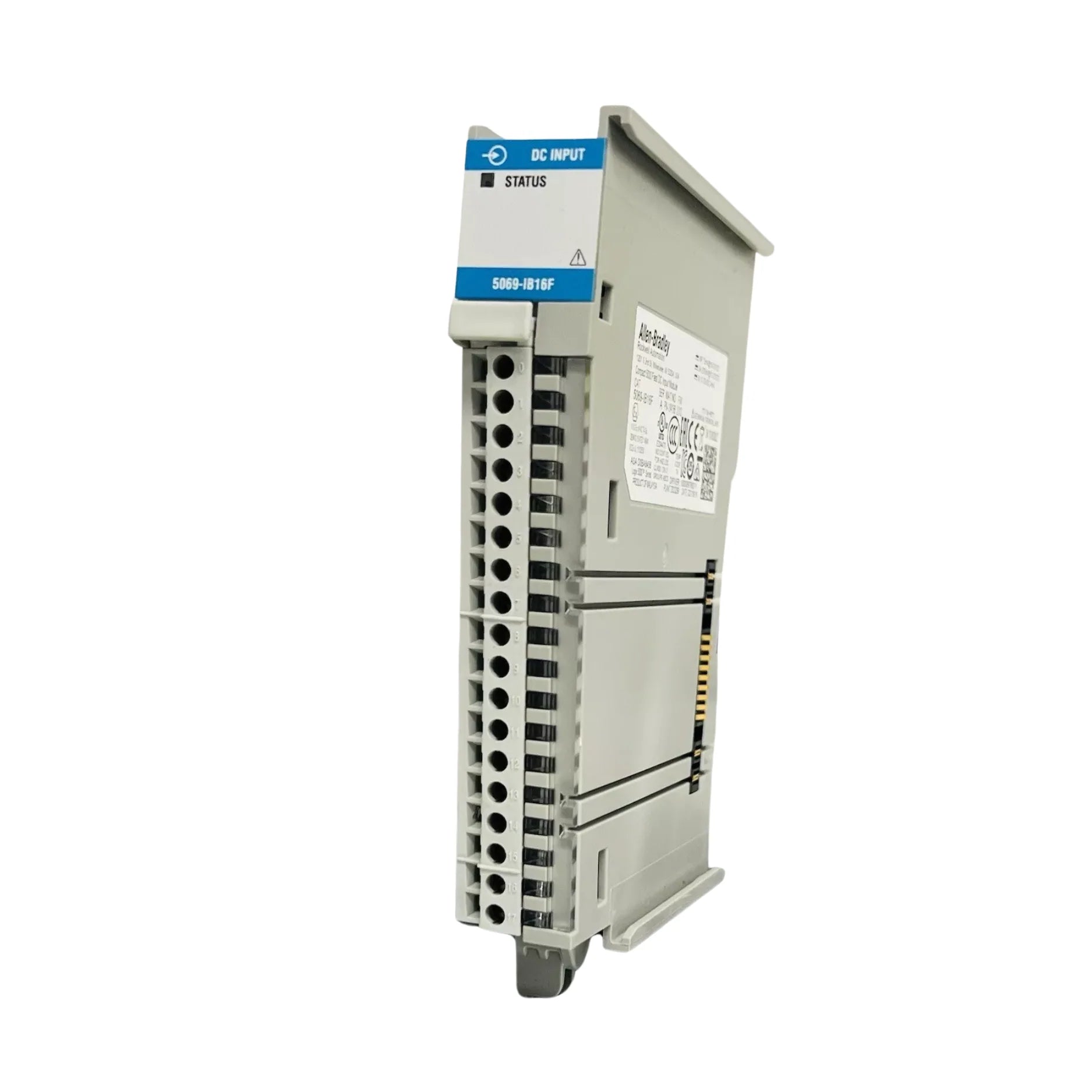

Allen-Bradley 5069-IB16F 5069 Compact I/O Input Module 5069IB16F

Description:

The Allen-Bradley 5069-IB16F Compact I/O Input Module is used in industrial automation systems to provide discrete DC input signaling for sensors, switches, and field devices within the Logix 5000 I/O family. Commonly installed in Compact I/O racks and distributed control architectures where real-time status feedback and reliable digital input detection are required. Maintenance teams and system integrators use this module for I/O expansions, retrofit upgrades, replacement of failed input cards, and enhancement of automation panel connectivity.

Applications:

The Allen-Bradley 5069-IB16F input module is commonly used in manufacturing production lines, material handling systems, packaging machinery, HVAC and building automation panels, water and wastewater treatment facilities, and automated assembly systems where accurate discrete input signals enable real-time logic control and system responsiveness.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Model: 5069-IB16F
• Product Type: Compact I/O 16-Point DC Input Module
• Input Channels: 16 discrete DC inputs
• Input Voltage: 24 V DC nominal
• Compatibility: Rockwell Automation Compact I/O and Logix 5000 systems
• Interface: Backplane connection to Compact I/O chassis
• Mounting Type: DIN rail or panel mounted module
• Signal Type: Positive logic digital inputs for field devices
• Function: Captures discrete input status for PLC logic control
• Application Category: Digital input acquisition and automation control
• Operating Temperature Range: Industrial-rated conditions
• Protection Rating: Installed within control enclosure

Common Replacements:

• Allen-Bradley 5069-IB16F-1 Compact I/O DC Input Module (newer revision)
• Allen-Bradley 1734-IB16S POINT I/O DC Input Module
• Allen-Bradley 1769-IB16 CompactLogix DC Input Module
