Allen-Bradley 5069-IF8 Compact 5000 Analog Input Module 5069IF8

Description:

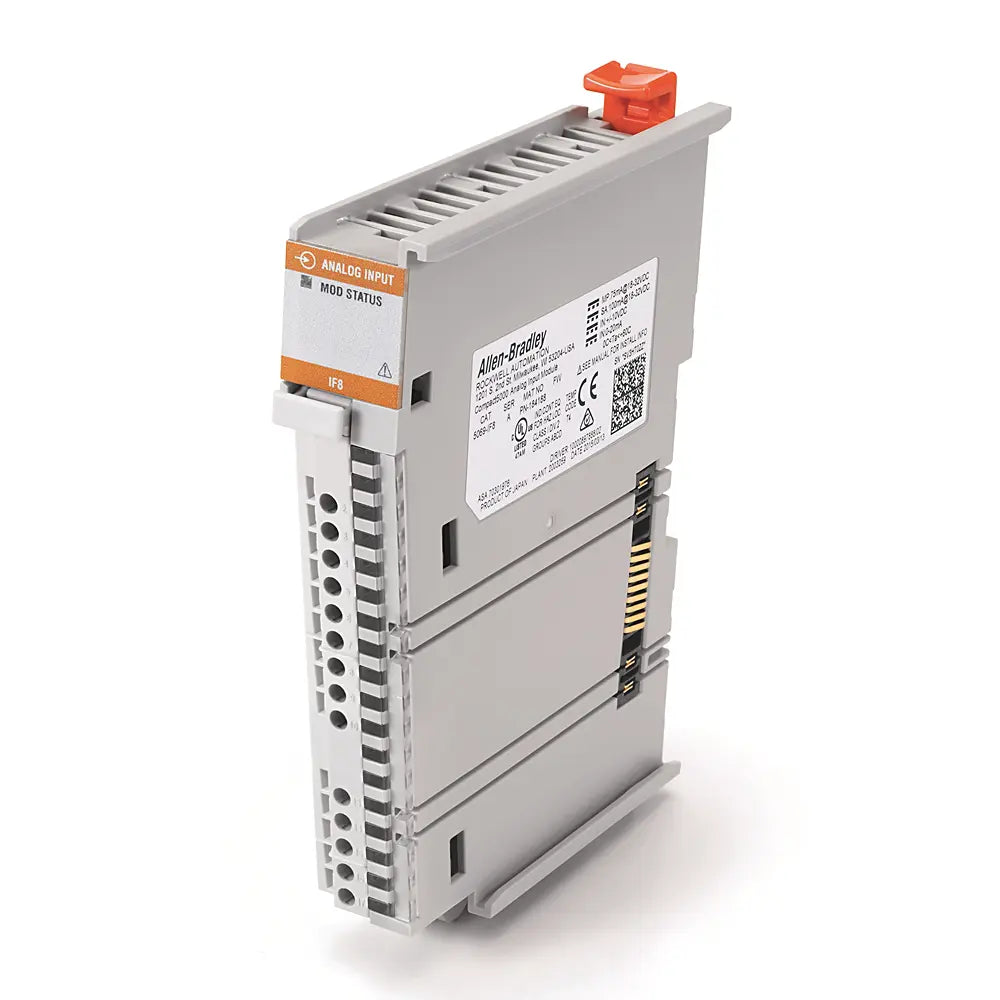

5069IF8 PLC MODULE COMPACT 5000 ANALOG INPUT TYPE 8 CHANNEL CURRENT / VOLTAGE SENSING RACK MOUNT The Allen-Bradley 5069-IF8 is an analog input module designed for use with the CompactLogix 5380 and 5480 series PLCs. This module features eight channels capable of measuring analog signals with high precision, supporting both voltage and current inputs. It provides reliable data acquisition for various industrial applications where accurate analog measurement is essential, and its compact design makes it suitable for applications with space constraints.

Technical Specifications:

• Input Type: Voltage (0-10V) or Current (4-20mA)
• Number of Inputs: 8
• Resolution: 16 bits
• Accuracy: ±0.1% of full scale
• Input Range:
• Voltage: 0-10V DC
• Current: 4-20mA
• Input Impedance:
• Voltage: 10 kΩ
• Current: 250 Ω
• Isolation: 30V DC between channels and backplane
• Conversion Time: 2 ms per channel (typical)
• Backplane Current Draw: 250 mA at 5V DC
• Module Size: 4.5 x 4.7 x 1.7 inches (114 x 120 x 43 mm)
• Temperature Range: 0 to 60°C (32 to 140°F) operating
