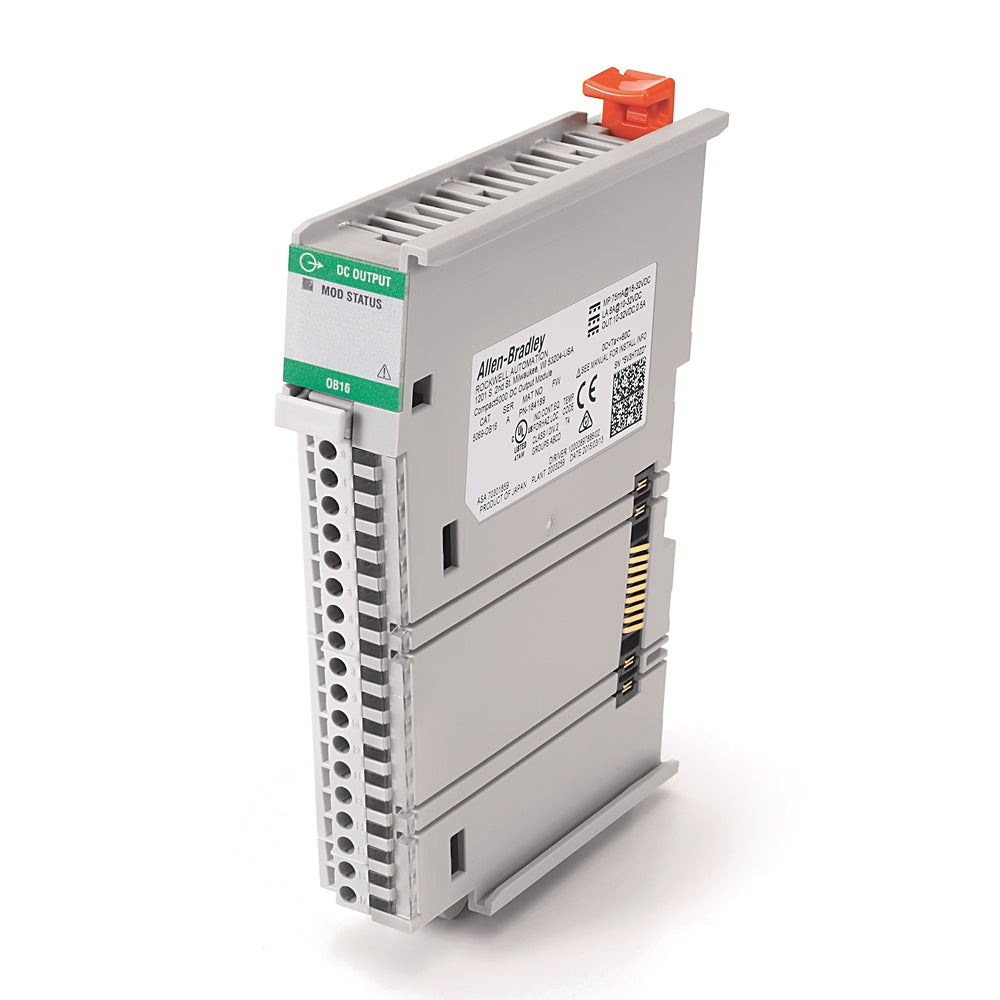

Allen-Bradley 5069-OB16 LOGIX 5000DC OUTPUT MODULE 2022 5069OB16

Description:

The Allen-Bradley 5069-OB16 LOGIX 5000 DC Output Module is used in industrial automation systems to provide discrete sourcing digital outputs for controlling field devices such as solenoids, relays, lights, and actuators in Logix 5000 I/O architectures. Commonly installed in CompactLogix and Studio 5000 control racks where reliable positive-switching outputs are required for machine control and signal actuation. Maintenance teams and system integrators use this module for I/O expansions, retrofit upgrades, replacement of failed output modules, and enhancement of automation panel functionality.

Applications:

The Allen-Bradley 5069-OB16 output module is commonly used in industrial automation environments including manufacturing production lines, material handling systems, packaging machinery, water and wastewater facilities, HVAC control systems, and assembly automation where dependable sourcing outputs support actuation of external devices under PLC control.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Model: 5069-OB16
• Product Type: Logix 5000 DC Digital Output Module
• Output Channels: 16 discrete sourcing outputs
• Output Type: DC sourcing (positive switching) digital outputs
• Load Voltage: 24 V DC typical (verify specific module rating)
• Compatibility: Logix 5000 I/O systems (CompactLogix / GuardLogix)
• Interface: Backplane connection to Logix 5000 chassis
• Mounting Type: Rack mounted within 5069 Logix 5000 I/O family
• Function: Provides discrete output control for actuators, indicators, and field devices
• Application Category: Discrete output signaling in industrial automation
• Operating Temperature Range: Industrial-rated conditions
• Protection Rating: Installed within protected automation enclosure

Common Replacements:

• Allen-Bradley 5069-OB32 32-Point Output Module
• Allen-Bradley 1756-OB16I ControlLogix Digital Output Module
• Allen-Bradley 1734-OB16E POINT I/O Output Module
