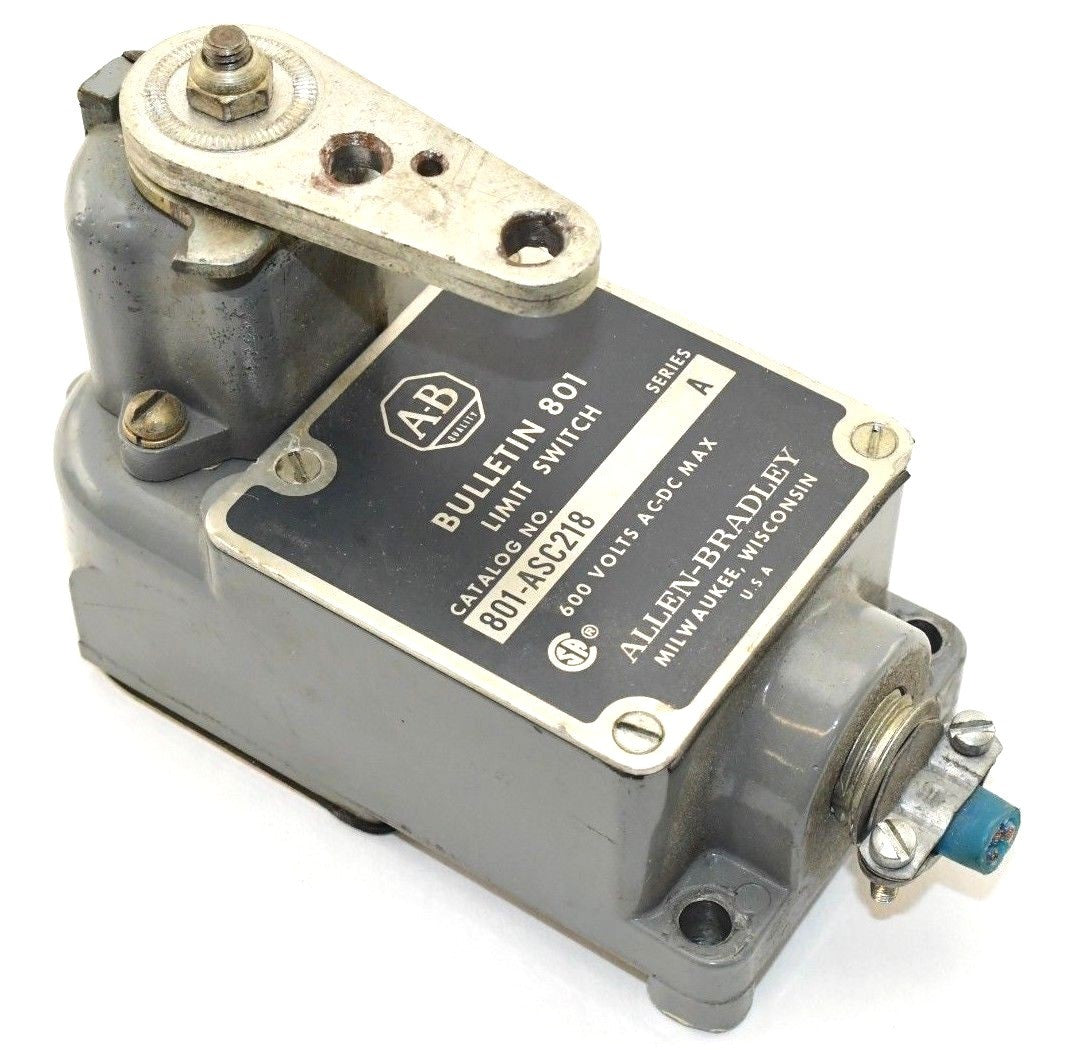

Allen-Bradley 801-ASC218 ROLLER LEVER LIMIT SWITCH NSFB 801ASC218

Description:

801ASC218 GENERAL PURPOSE LIMIT SWITCH NEMA 7 HOUSING STYLE ROLLER LEVER 1 NOC & 3 NCC RATCHET TYPE MAINTAINED NEMA 1 ENCLOSURE 218,28.92N (6.5 LBS) SPRING RETURN 12 DEGREES 68 DEGREES The Allen-Bradley 801-ASC218 Series A Roller Lever Limit Switch is a highly durable and versatile device designed for precise position sensing and control in industrial automation systems. Featuring a robust roller lever actuator, this limit switch is ideal for applications requiring reliable detection of mechanical motion or position changes. The Series A model provides reliable switching performance with a high degree of accuracy and is engineered to withstand harsh operating conditions. Its rugged construction ensures long service life, making it suitable for use in challenging environments such as manufacturing lines, conveyor systems, and machinery.

Technical Specifications:

• Product Type: Roller Lever Limit Switch
• Model: 801-ASC218
• Series: A
• Actuator Type: Roller Lever
• Contact Configuration: SPDT (Single Pole Double Throw)
• Operating Voltage: Up to 600V AC
• Current Rating: 10 A
• Contact Material: Silver alloy
• Enclosure Type: IP67 (NEMA 6)
• Operating Temperature Range: -25°C to 70°C (-13°F to 158°F)
• Mechanical Life: 1 million operations
• Electrical Life: 100,000 operations at rated load
• Actuator Roll Diameter: 12 mm (0.47 in)
• Mounting Type: Side or back mount
• Dimensions: Approx. 120 mm x 55 mm x 55 mm (4.72 in x 2.17 in x 2.17 in)
• Weight: Approx. 0.4 kg (0.88 lbs)
• Features: Adjustable roller lever, high mechanical and electrical durability, easy installation
