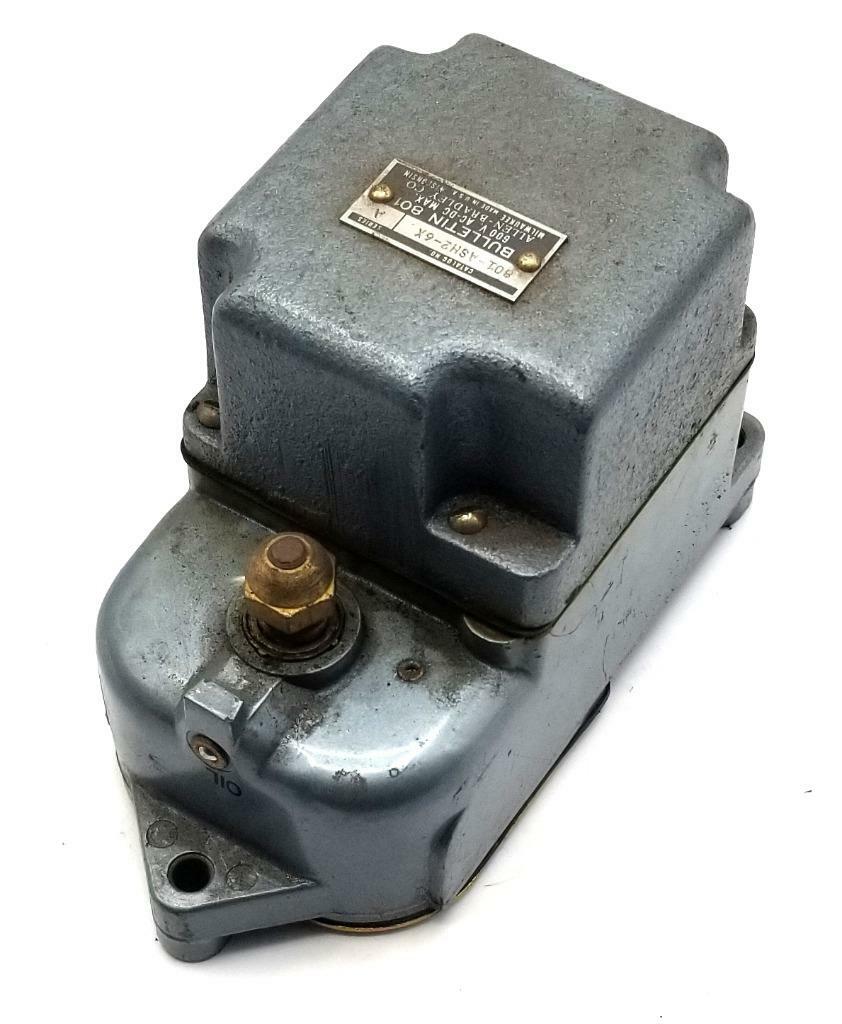

Allen Bradley 801-ASH2-6X Roller Limit Switch W Lever Arm 600 V 801ASH26X

Description:

The Allen-Bradley 801-ASH2-6X Roller Limit Switch with Lever Arm is used in industrial automation systems for position detection and end-of-travel control. Commonly installed in conveyor systems, machine tools, packaging equipment, and light-duty automation processes requiring reliable mechanical switching. Maintenance teams and system integrators use this part for repair, retrofit, and replacement to maintain consistent machine operation.

Applications:

The Allen-Bradley 801-ASH2-6X limit switch is used in industrial environments where dependable and repeatable position sensing is required. It is commonly applied in conveyor systems for object detection, packaging and bottling lines for sequence control, machine tools for limit positioning, and material handling systems to prevent overtravel and ensure safe operation.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 801-ASH2-6X
• Product Type: Roller Lever Limit Switch
• Bulletin: 801
• Rated Voltage: 600 V
• Actuator Type: Roller lever arm
• Contact Configuration: 1 NO + 1 NC
• Switching Mechanism: Snap action
• Enclosure Type: General-purpose industrial housing
• Protection Rating: NEMA Type 1, 3, 4, 13
• Rated Current: Up to 10 A
• Operating Temperature: -20°C to +85°C
• Mounting Type: Surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 801-ASH22 Limit Switch
• Allen-Bradley 801-ASH26X Limit Switch
• Schneider Electric XCKN2118 Limit Switch
