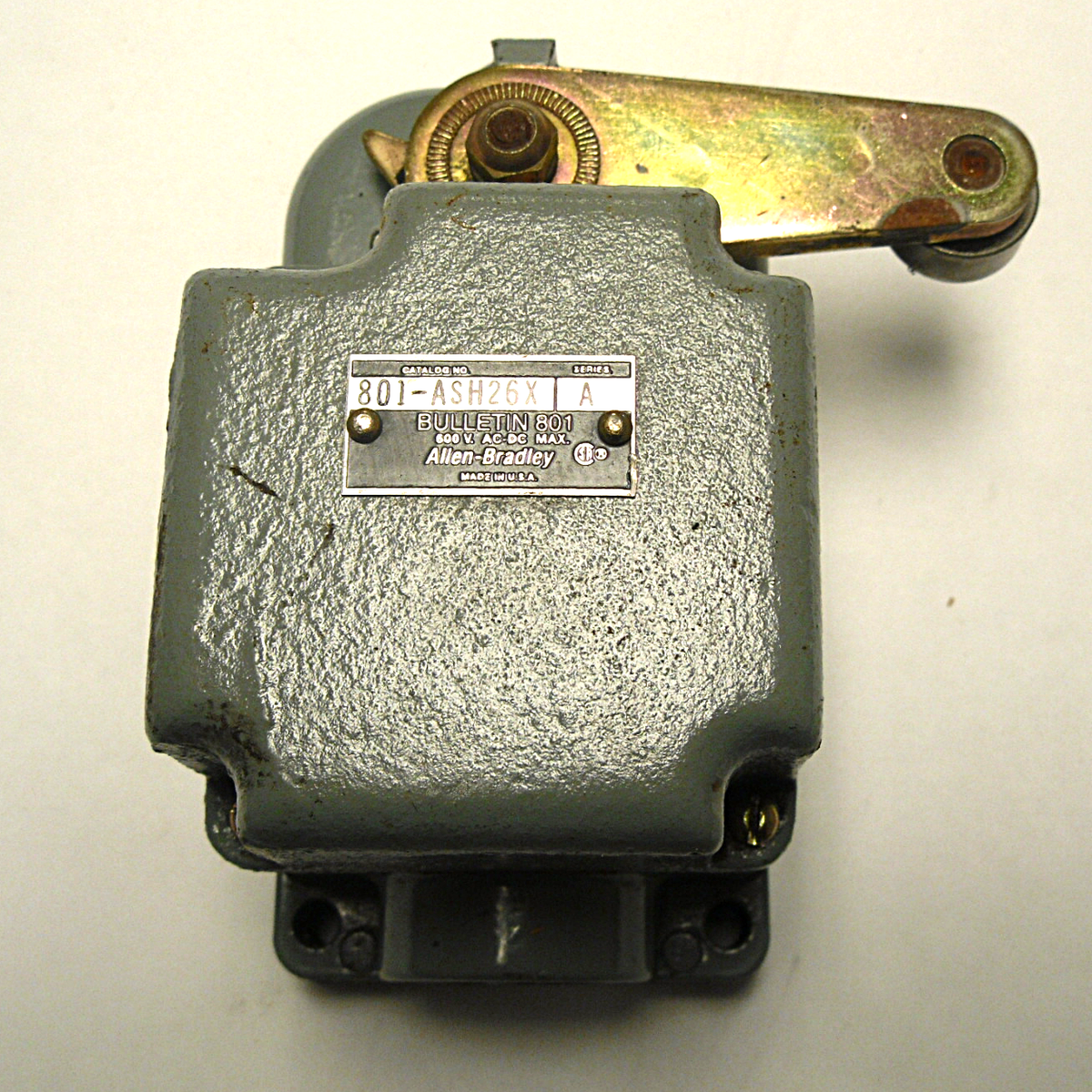

Allen Bradley 801-ASH26X Bulletin 801 General Purpose Limit Switch 801ASH26X

Description:

The Allen-Bradley 801-ASH26X General Purpose Limit Switch is used in industrial automation systems for position detection and end-of-travel control. Commonly installed in conveyor systems, machine tools, packaging equipment, and light-duty automation processes requiring reliable switching. Maintenance teams and system integrators use this part for repair, retrofit, and replacement to maintain consistent machine operation.

Applications:

The Allen-Bradley 801-ASH26X limit switch is used in industrial environments where dependable and cost-effective position sensing is required. It is commonly applied in conveyor systems for object detection, packaging and bottling lines for sequence control, machine tools for limit positioning, and light material handling systems to prevent overtravel and ensure safe operation.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 801-ASH26X
• Bulletin: 801
• Product Type: General Purpose Limit Switch
• Actuator Type: Lever type (typical configuration)
• Contact Configuration: 1 NO + 1 NC
• Switching Mechanism: Snap action
• Rated Operational Voltage: Up to 600 VAC
• Rated Current: Up to 10 A
• Enclosure Type: General-purpose industrial housing
• Protection Rating: NEMA Type 1, 3, 4, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 801-A Limit Switch
• Allen-Bradley 802T-AP Limit Switch
• Schneider Electric XCKJ167 Limit Switch
