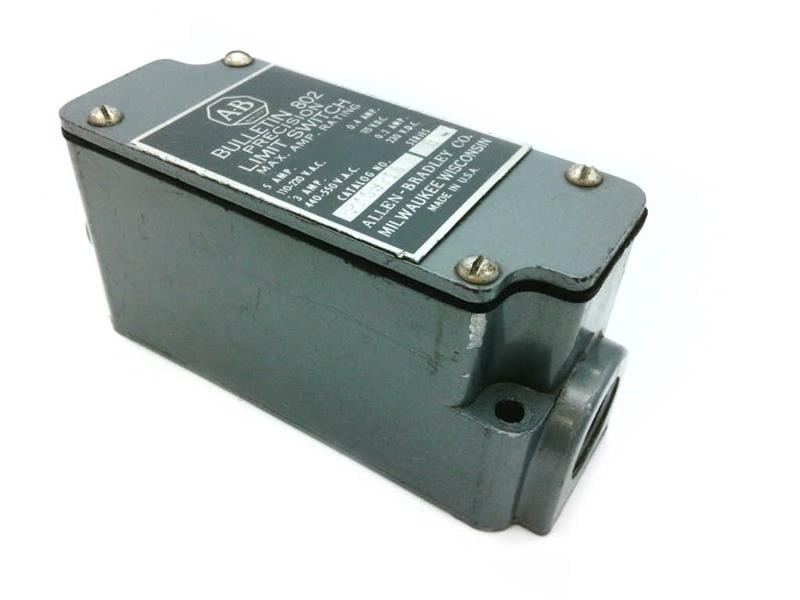

ALLEN BRADLEY 802-PASJ2-18 LIMIT SWITCH 802PASJ218

Description:

The Allen-Bradley 802-PASJ2-18 Limit Switch is used in industrial automation systems for precision position detection and end-of-travel control. Commonly installed in packaging machines, conveyors, assembly equipment, and automated production lines requiring compact and reliable switching. Maintenance teams and system integrators use this part for repair, retrofit, and replacement to maintain accurate machine operation.

Applications:

The Allen-Bradley 802-PASJ2-18 limit switch is used in industrial environments where dependable and repeatable position sensing is required. It is commonly applied in packaging and bottling lines for sequence control, conveyor systems for object detection, assembly machinery for positioning, and automated equipment to prevent overtravel and ensure safe operation.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 802-PASJ2-18
• Product Type: Limit Switch
• Series: 802 Compact Series
• Actuator Type: Lever type (typical configuration)
• Contact Configuration: 1 NO + 1 NC
• Switching Mechanism: Snap action
• Rated Operational Voltage: Up to 600 VAC
• Rated Current: Up to 10 A
• Enclosure Type: Industrial metal housing
• Protection Rating: NEMA Type 1, 3, 4, 6, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Panel or surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 802-PASJ2 Limit Switch
• Allen-Bradley 802T-AP Limit Switch
• Schneider Electric XCKJ167 Limit Switch
