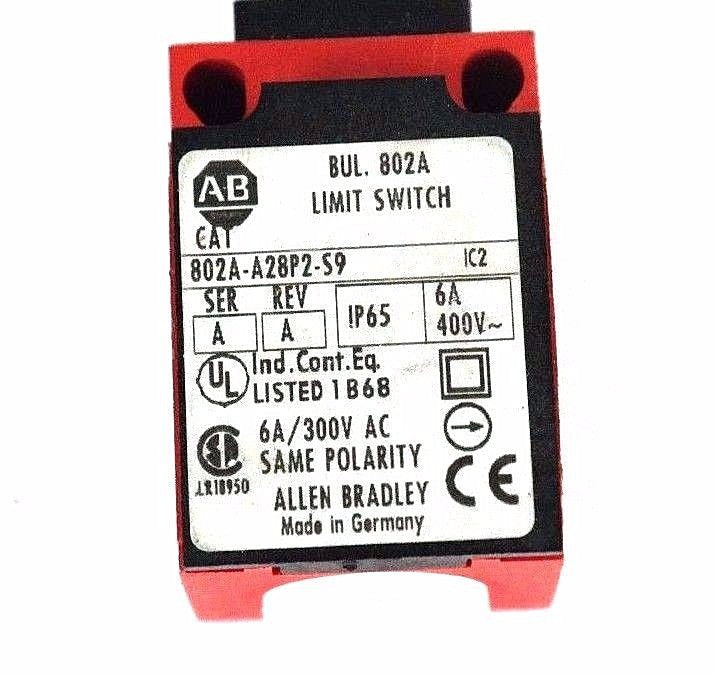

ALLEN BRADLEY 802A-A28P2-S9 LIMIT SWITCH 6A 300VAC 802AA28P2S9

Description:

The Allen-Bradley 802A-A28P2-S9 Limit Switch is used in industrial automation systems for precision position detection and end-of-travel control. Commonly installed in packaging machines, conveyors, assembly equipment, and automated production lines requiring compact and reliable switching. Maintenance teams and system integrators use this part for repair, retrofit, and replacement to maintain accurate machine operation.

Applications:

The Allen-Bradley 802A-A28P2-S9 limit switch is used in industrial environments where precise and repeatable position sensing is required. It is commonly applied in packaging and bottling lines for sequence control, conveyor systems for object detection, assembly machinery for positioning, and automated equipment to prevent overtravel and ensure safe operation.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 802A-A28P2-S9
• Product Type: Limit Switch
• Series: 802A Compact Series
• Rated Voltage: 300 VAC
• Rated Current: 6 A
• Actuator Type: Plunger type (typical configuration)
• Contact Configuration: 1 NO + 1 NC
• Switching Mechanism: Snap action
• Enclosure Type: Compact industrial housing
• Protection Rating: NEMA Type 1, 3, 4, 6, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Panel or surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 802A-A28 Limit Switch
• Allen-Bradley 802T-A Limit Switch
• Schneider Electric XCKP2118 Limit Switch
