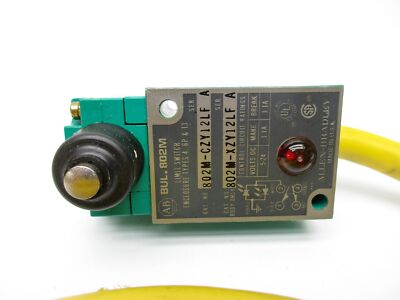

Allen Bradley 802M-XZY12LF Limit Switch 1.1A 5-24Vdc MRO 802MXZY12LF

Description:

The Allen-Bradley 802M-XZY12LF Limit Switch is used in industrial automation systems for low-voltage position detection and control circuits. Commonly installed in packaging machines, assembly equipment, conveyors, and automated production lines requiring compact and reliable switching. Maintenance teams and system integrators use this part for repair, retrofit, and replacement in low-voltage control applications.

Applications:

The Allen-Bradley 802M-XZY12LF limit switch is used in industrial environments where compact size and low-voltage switching are required. It is commonly applied in assembly lines for precise position sensing, packaging machinery for sequence control, conveyor systems for object detection, and automated equipment to ensure accurate positioning and prevent overtravel.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 802M-XZY12LF
• Product Type: Limit Switch
• Series: 802M Compact Series
• Rated Voltage: 5–24 VDC
• Rated Current: 1.1 A
• Contact Configuration: 1 NO + 1 NC
• Switching Mechanism: Snap action
• Actuator Type: Adjustable roller lever (typical configuration)
• Terminal Type: Screw terminals
• Enclosure Type: Compact sealed housing
• Protection Rating: NEMA Type 1, 3, 4, 6, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Panel or surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 802M-XZY12 Limit Switch
• Allen-Bradley 802M-XT Limit Switch
• Schneider Electric XCKP2118 Limit Switch
