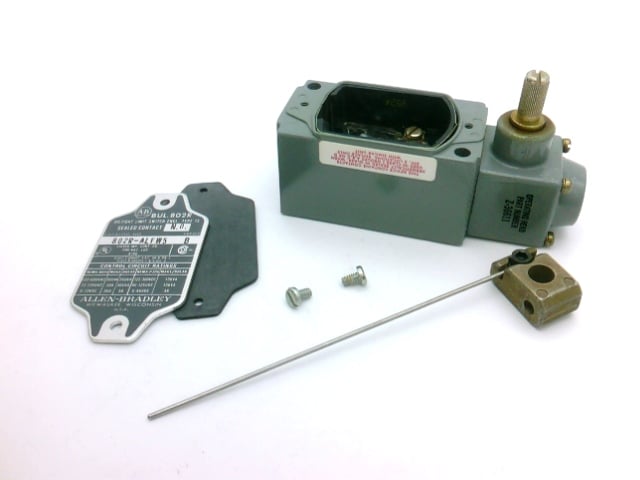

ALLEN BRADLEY 802R-ALFW5 LIMIT SWITCH #318388 802RALFW5

Description:

The Allen-Bradley 802R-ALFW5 Limit Switch is used in industrial automation systems for precision position detection and end-of-travel control in compact machinery. Commonly installed in assembly machines, packaging equipment, conveyors, and light-duty automation systems requiring reliable switching in confined spaces. Maintenance teams and system integrators use this part for repair, retrofit, and replacement to maintain accurate machine positioning and operation.

Applications:

The Allen-Bradley 802R-ALFW5 limit switch is used in industrial applications where compact size and precise actuation are critical. It is commonly applied in assembly lines for position sensing, packaging machinery for sequence control, conveyor systems for object detection, and automated equipment to ensure proper alignment and prevent overtravel.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 802R-ALFW5
• Alternate Part Number: 318388
• Product Type: Compact Limit Switch
• Series: 802R Miniature Series
• Actuator Type: Flexible rod lever (whisker type)
• Contact Configuration: 1 NO + 1 NC
• Switching Mechanism: Snap action
• Rated Operational Voltage: Up to 600 VAC
• Rated Current: Up to 5 A
• Enclosure Type: Compact sealed housing
• Protection Rating: NEMA Type 1, 3, 4, 6, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Panel or surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 802R-AJ Limit Switch
• Allen-Bradley 802R-A2 Limit Switch
• Schneider Electric XCKP2102 Limit Switch
