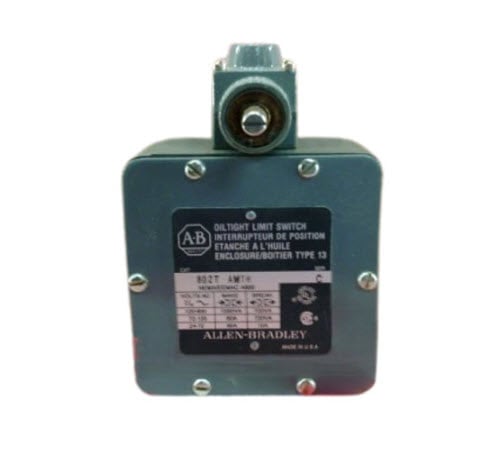

ALLEN BRADLEY 802T-AMTH LIMIT SWITCH 802TAMTH

Description:

The Allen-Bradley 802T-AMTH Limit Switch is used in industrial automation systems for heavy-duty position detection and end-of-travel control. Commonly installed in conveyor systems, machine tools, hoisting equipment, and harsh industrial environments requiring rugged and reliable switching. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and ensuring dependable machine safety and operation.

Applications:

The Allen-Bradley 802T-AMTH limit switch is used in demanding industrial applications where durability and precise mechanical actuation are critical. It is commonly applied in material handling systems for position sensing, crane and hoist systems for travel limits, packaging and processing machinery for sequence control, and heavy equipment to prevent overtravel and mechanical damage.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 802T-AMTH
• Product Type: Heavy-Duty Limit Switch
• Actuator Type: Adjustable lever (typical 802T series configuration)
• Contact Configuration: 1 NO + 1 NC
• Rated Operational Voltage: Up to 600 VAC
• Rated Current: Up to 10 A
• Switching Mechanism: Snap action
• Enclosure Type: Heavy-duty metal housing
• Protection Rating: NEMA Type 1, 3, 4, 6, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 802T-AP Limit Switch
• Allen-Bradley 802T-AT Limit Switch
• Schneider Electric XCKJ10541 Limit Switch
