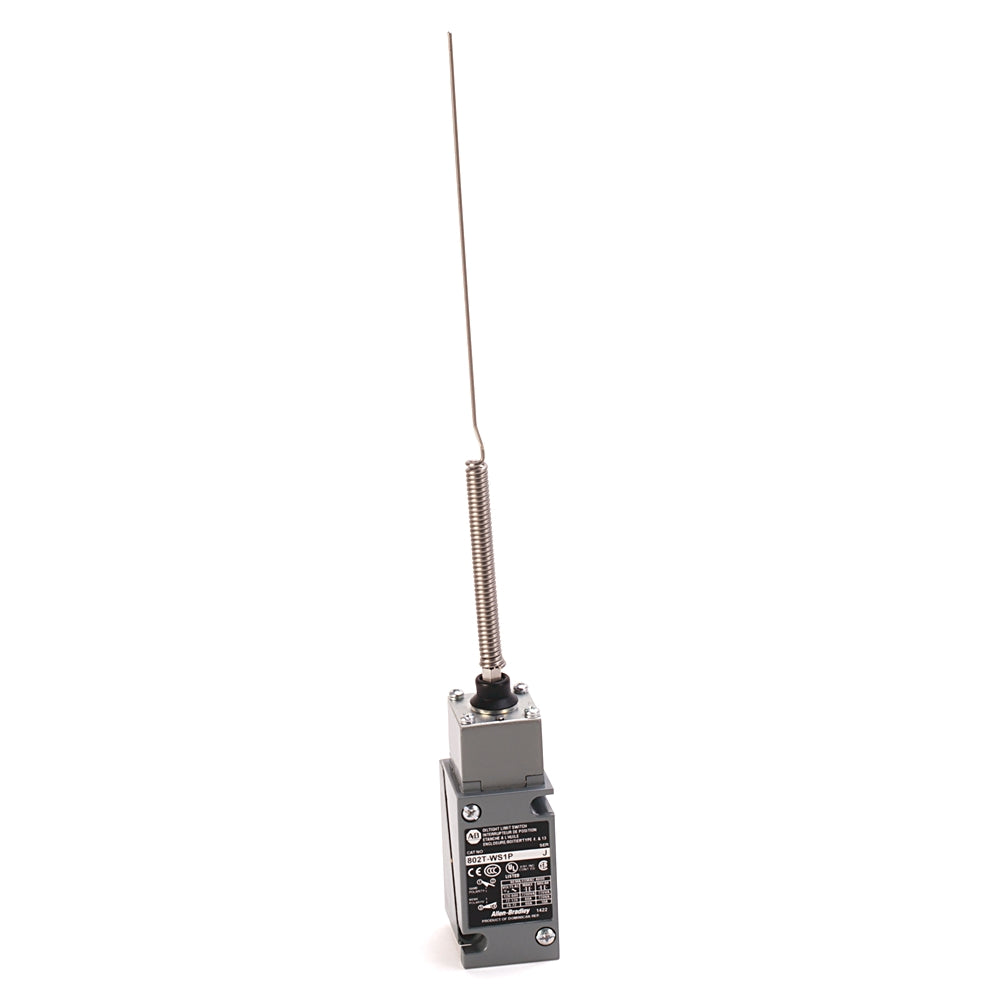

ALLEN BRADLEY 802T WS1P Plug In 2 Circuit Wobble Stick Operator Limit Switch

Description:

The Allen-Bradley 802T WS1P Plug-In 2 Circuit Wobble Stick Operator Limit Switch is used in industrial automation systems for emergency stop and position detection along conveyor systems. Commonly installed in bulk material handling conveyors, mining systems, and processing lines requiring cable-actuated or wobble stick switching. Maintenance teams and system integrators use this part for repair, retrofit, and replacement to ensure operator safety and reliable shutdown control.

Applications:

The Allen-Bradley 802T WS1P wobble stick limit switch is used in industrial environments where manual or mechanical actuation is needed for safety and control. It is commonly applied in conveyor systems for emergency stop activation, bulk material handling for pull-cord or stick actuation, processing plants for safety interlocking, and heavy-duty operations to quickly stop machinery during faults or maintenance.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 802T WS1P
• Product Type: Wobble Stick Operator Limit Switch
• Configuration: Plug-in type
• Circuits: 2 circuit
• Actuator Type: Wobble stick operator
• Contact Configuration: 2 NO + 2 NC (typical)
• Switching Mechanism: Snap action
• Rated Operational Voltage: Up to 600 VAC
• Rated Current: Up to 10 A
• Enclosure Type: Oil-tight heavy-duty metal housing
• Protection Rating: NEMA Type 1, 3, 4, 6, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 802T-AP Limit Switch
• Allen-Bradley 802T-A Limit Switch
• Schneider Electric XCKJ10541 Limit Switch
