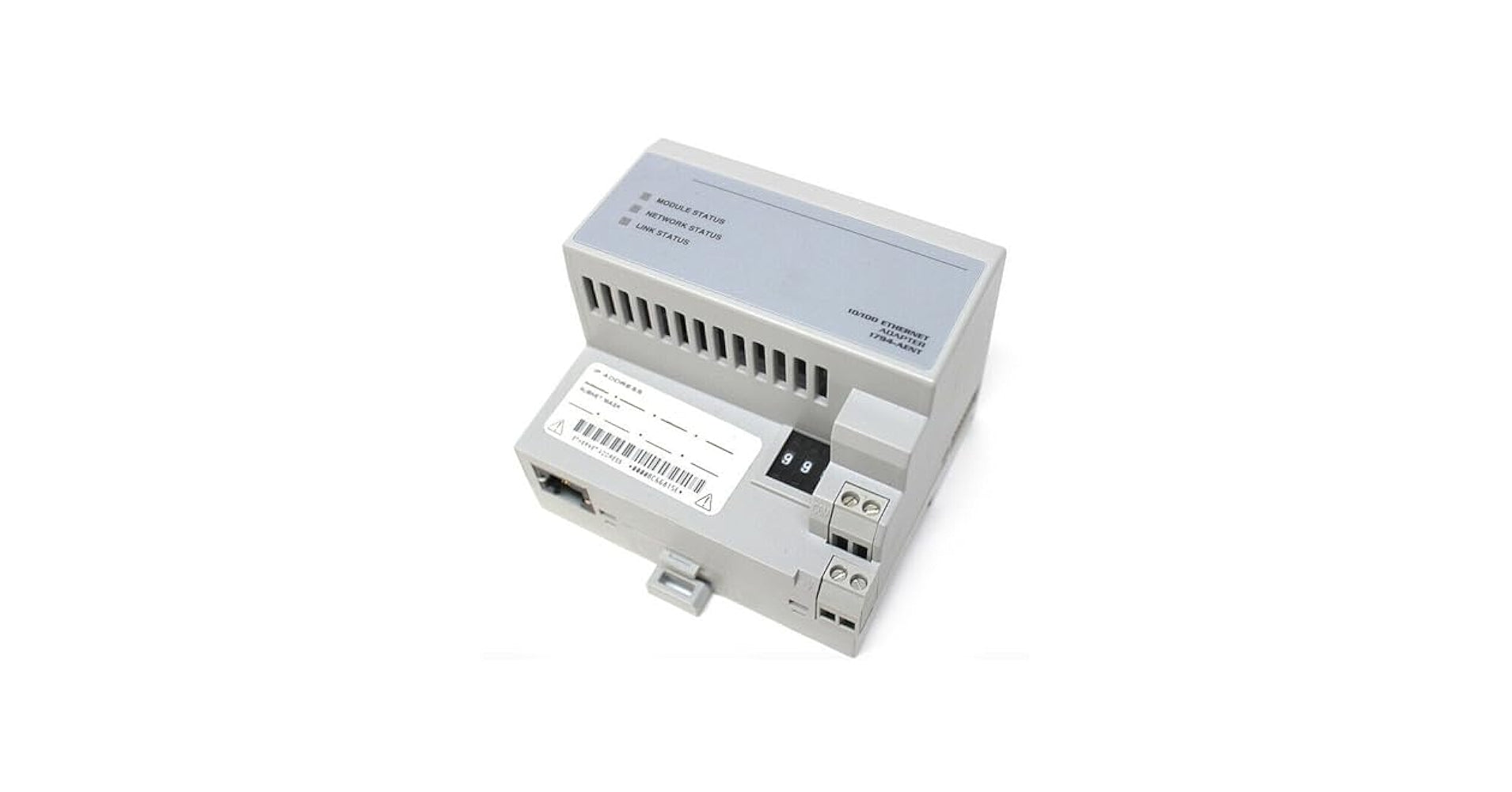

Allen-Bradley 1794-AENT Flex I/O EtherNet/IP Adaptor 1794AENT

Description:

The Allen-Bradley 1794-AENT is an Ethernet/IP adapter module for the FLEX I/O system. It allows distributed I/O nodes to communicate with a Logix-based controller over an Ethernet/IP network. The 1794-AENT provides fast data exchange, supports real-time control, and simplifies the integration of FLEX I/O modules in remote or modular applications. With support for up to 64 modules and built-in diagnostics, it offers a reliable and scalable solution for industrial automation networks.

TECHNICAL SPECIFICATIONS:

Model: 1794-AENT
Series: FLEX I/O
Adapter Type: Ethernet/IP Network Adapter
Communication Ports: Dual 10/100 Mbps Ethernet RJ-45 ports (embedded switch)
Supported Protocols: Ethernet/IP, CIP
Max Number of I/O Modules: 64 FLEX I/O modules per adapter
Power Supply: 19.2–31.2V DC (24V DC nominal)
Current Draw: 400 mA at 24V DC
Power Consumption: 9.6W max
Isolation Voltage: 50V (continuous), basic insulation type
Mounting: DIN rail
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: –40°C to 85°C (–40°F to 185°F)
Certifications: UL, CE, c-UL, ATEX, Class I Div 2
Dimensions: Approx. 87 mm x 94 mm x 69 mm (H x W x D)
Weight: Approx. 0.3 kg (0.66 lbs)
