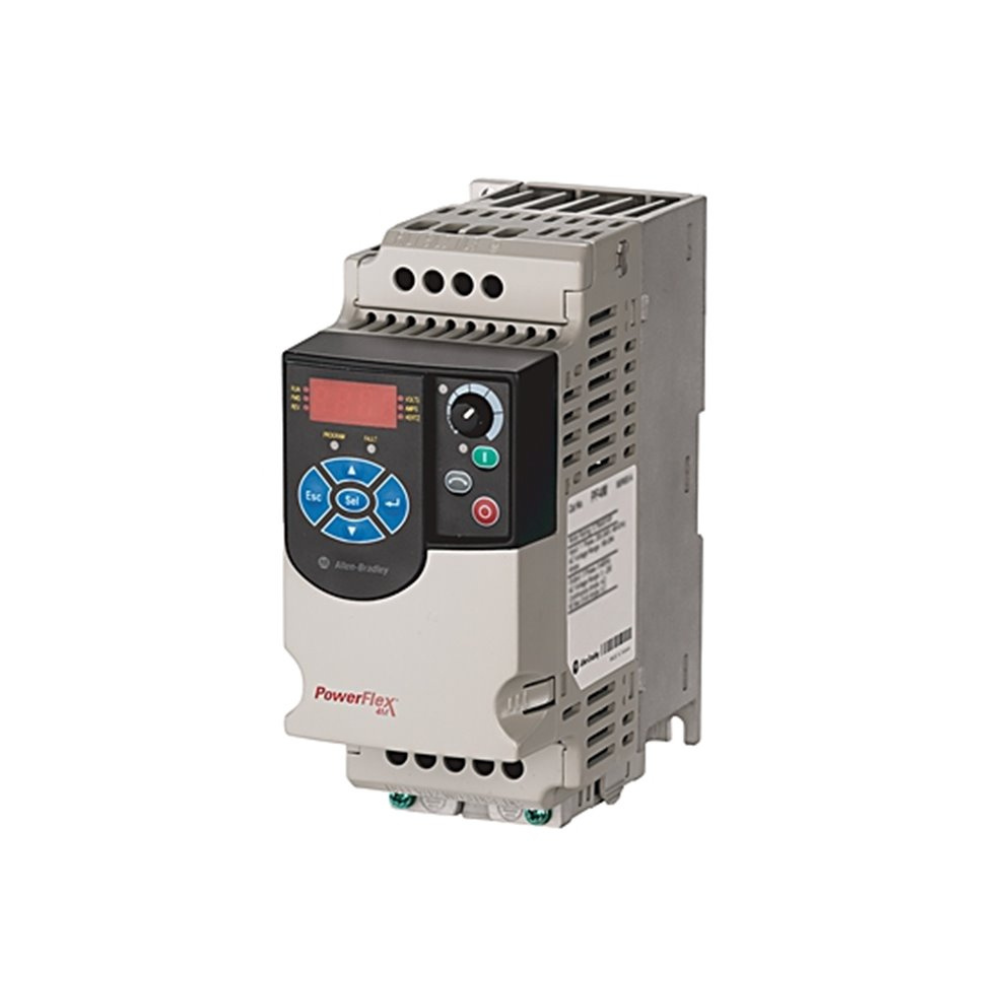

Allen-Bradley PowerFlex 4M-2.2 kW 3 HP AC Drive 22F-D6P0N103 22FD6P0N103

Description:

The Allen-Bradley 22F-D6P0N103 PowerFlex 4M AC Drive is a compact variable frequency drive designed for industrial motor control systems requiring adjustable speed and efficient motor operation. Built for 480V three-phase input, this drive delivers 2.2 kW (3 HP) output with approximately 6 A rated current, providing reliable control for small to mid-size motors in automation equipment. Maintenance teams, OEM machine builders, and system integrators use this drive for equipment repairs, control panel retrofits, automation upgrades, and replacement of existing VFD units in industrial motor control systems.

Applications:

The PowerFlex 4M AC drive is commonly used in industrial automation systems to control three-phase induction motors in machine-level applications. Typical installations include conveyor systems, packaging machines, pumps, fans, and material handling equipment where consistent motor speed control and compact panel integration are required. Its small footprint and simple keypad interface make it suitable for standalone machines and distributed motor control environments.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Part Number: 22F-D6P0N103
• Series: PowerFlex 4M
• Rated Output Current: 6.0 A
• Input Voltage: 480V AC, 3-phase
• Output Voltage: 0–460V AC
• Power Rating: 2.2 kW (3 HP)
• Enclosure Rating: IP20 (Open Type)
• Frame Size: Frame B
• User Interface: LED display with fixed keypad
• Control Method: V/Hz Control
• Communication: RS-485 interface
• Frequency Rating: 50–60 Hz
• Mounting Type: Panel mount

Common Replacements:

• Allen-Bradley 22F-D8P7N103
• Allen-Bradley 25B-D6P0N104
• Allen-Bradley 22B-D6P0N104
