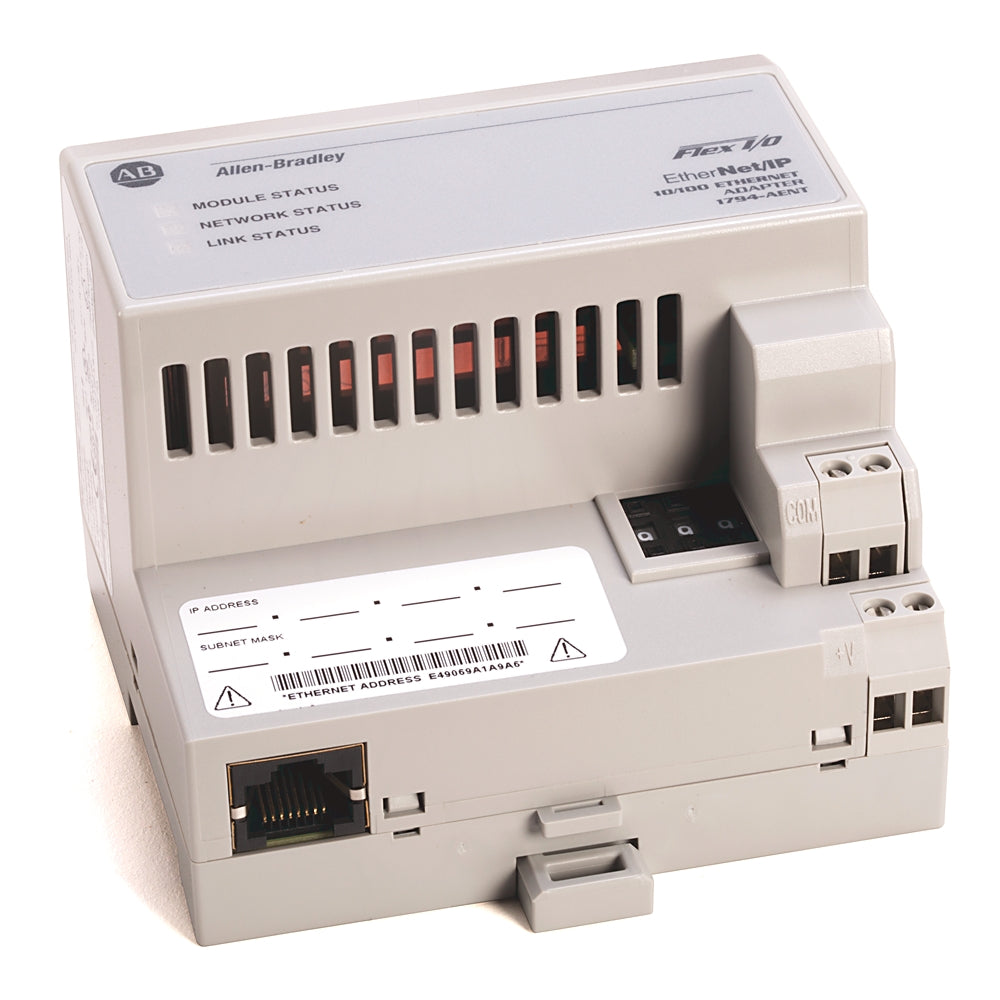

Allen-Bradley 1794-AENT Flex I/O EtherNet/IP Adapter Module 1794AENT

Description:

The Allen-Bradley 1794-AENT is an Ethernet/IP adapter module from the FLEX I/O family, enabling distributed I/O systems to communicate over industrial Ethernet networks. It connects FLEX I/O modules to controllers over EtherNet/IP, supporting real-time control, diagnostics, and simplified configuration. The 1794-AENT adapter supports up to 8 I/O modules and is ideal for scalable, space-efficient installations in applications such as material handling, packaging, and process automation.

Technical Specifications:

Series: FLEX I/O
Model number: 1794-AENT
Network type: EtherNet/IP
Communication rate: 10/100 Mbps
IP address assignment: DHCP, BOOTP, or static
I/O capacity: Supports up to 8 FLEX I/O modules
Power supply: 19.2–31.2 VDC
Current draw: 350 mA at 24 VDC
Power dissipation: 8.75 W
Isolation voltage: 50 V continuous
Operating temperature: 0 to 55 °C (32 to 131 °F)
Enclosure: Open style, DIN-rail mountable
Status indicators: Network activity, module status, and power
Dimensions: Approx. 87 x 69 x 56 mm
Weight: Approx. 170 g
