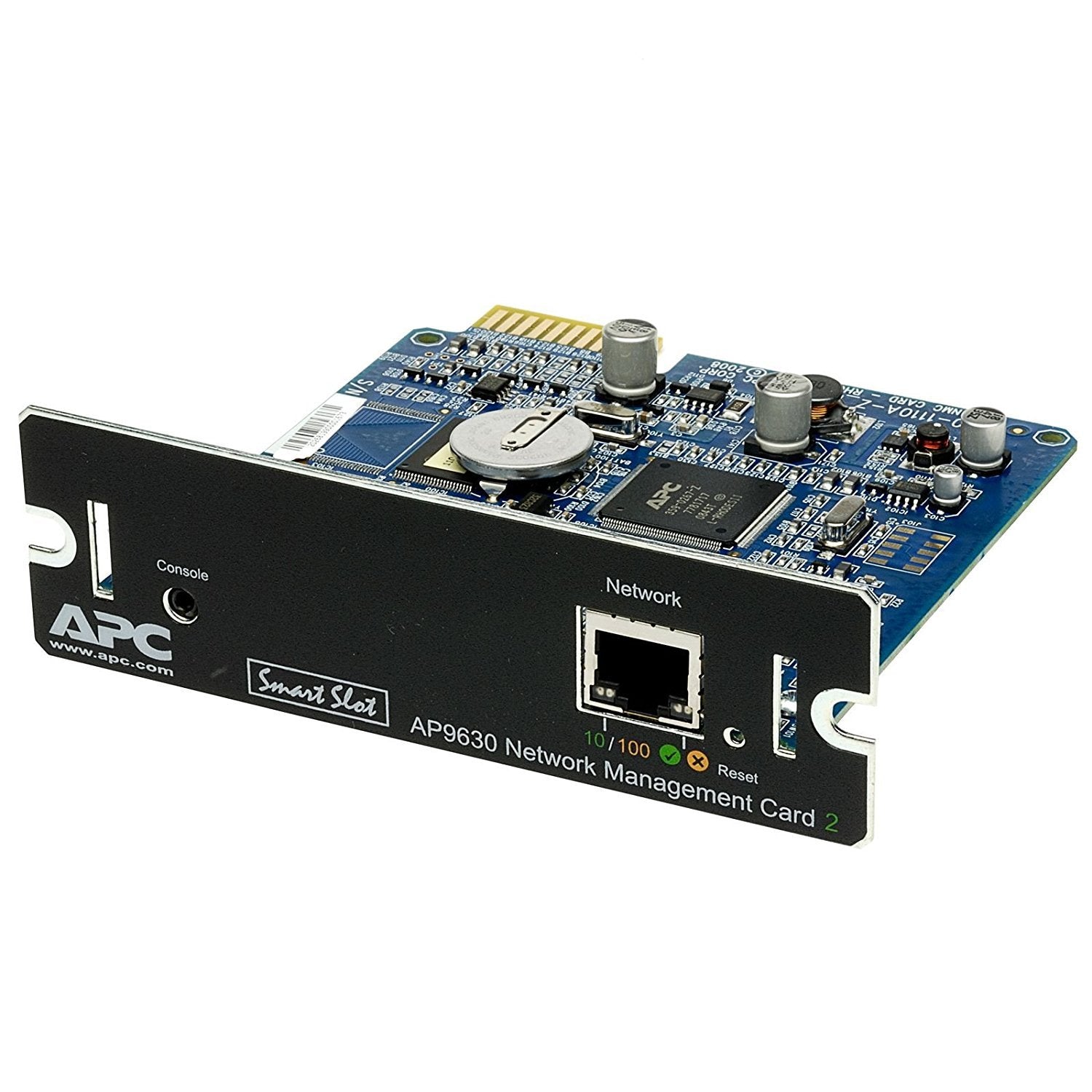

APC AP9630 Smart Slot Network Management Card 2

Description:

The APC AP9630 Smart Slot Network Management Card 2 is used in uninterruptible power supply (UPS) systems to provide remote network monitoring and management through Ethernet connectivity. It enables administrators to monitor UPS status, receive alerts, and control power management functions remotely using web, SNMP, or network management software. Commonly installed in data centers, server rooms, network infrastructure cabinets, and IT equipment installations, this card allows reliable monitoring of critical power systems. Maintenance teams and system administrators use this module for remote UPS management, network integration, power system monitoring, and replacement of existing APC network management cards.

Applications:

The APC AP9630 Network Management Card 2 is used in power protection systems where remote monitoring and management of UPS devices are required. It is commonly applied in data centers, enterprise server rooms, telecommunications infrastructure, and network equipment installations where administrators need real-time access to UPS performance data, event notifications, and remote management capabilities.

Technical Specifications:

• Manufacturer Part Number (MPN): AP9630
• Product Type: Network Management Card
• Compatible Systems: APC Smart-UPS with SmartSlot
• Network Interface: Ethernet (RJ45)
• Network Protocols: TCP/IP, SNMP, HTTP, HTTPS, FTP, Telnet, SSH
• Web Interface: Embedded Web-Based Management
• Management Functions: UPS Monitoring, Event Logging, Remote Shutdown
• Alert Notifications: Email, SNMP Traps, Syslog
• Slot Type: SmartSlot Expansion Card
• Operating Temperature: 0 to 45 °C (32 to 113 °F)

Common Replacements:

• APC AP9631
• APC AP9619
• APC AP9640
