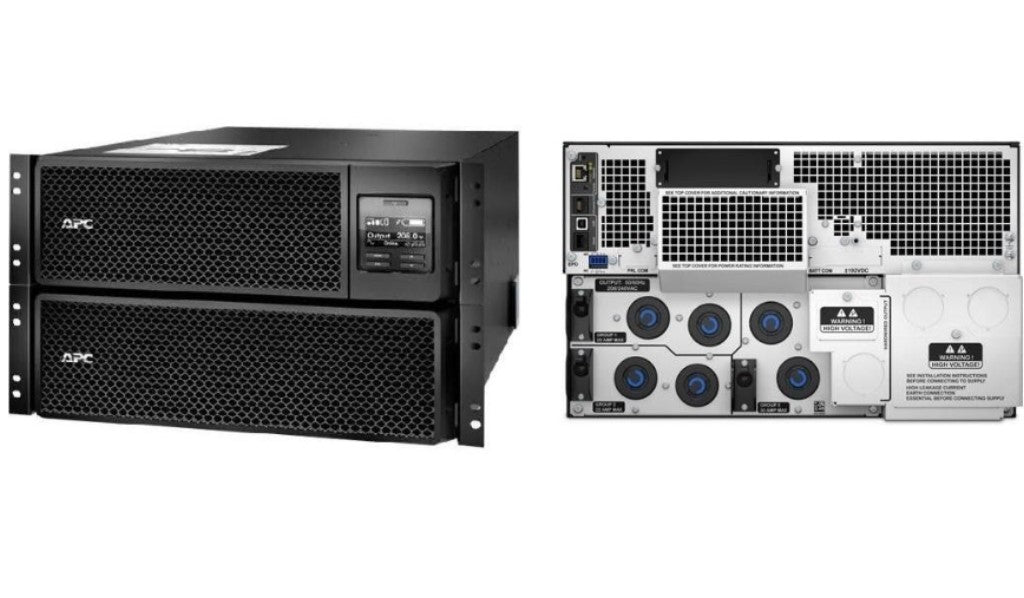

APC Smart-UPS SRT 8000VA RM UPS P/N: SRT8KRMXLT

Description:

SRT8KRMXLT APC SMART-UPS ON-LINE 8KVA/8KW RACKMOUNT 6U 208V 4X L6-20R+2X L6-30R NEMA OUTLETS NETWORK CARD+SMARTSLOT EXTENDED RUNTIME W/ RAIL KIT The APC Smart-UPS SRT8KRMXLT 8000VA Rackmount UPS is a high-performance uninterruptible power supply designed to deliver reliable, scalable, and flexible power protection for critical IT infrastructure. With a powerful 8000VA/8000W capacity, it is ideal for data centers, server rooms, and other mission-critical applications that require consistent and clean power. The unit features double-conversion online technology, providing seamless power during outages, surges, and fluctuations. Its compact 6U rackmount form factor includes an intuitive LCD interface for easy monitoring and management, making it a robust solution for ensuring business continuity.

Technical Specifications:

• Manufacturer: APC (Schneider Electric)
• Model Number: SRT8KRMXLT
• Capacity: 8000VA / 8000W
• Output Voltage: 208V AC (configurable for 240V)
• Input Voltage: 208V AC
• Input Connection: Hardwire 3-wire (L1, L2, N + G)
• Output Connections:
• 2 x NEMA L6-30R
• 2 x Hardwire 3-wire (L1, L2, N + G)
• Battery Type: Maintenance-free sealed lead-acid battery with suspended electrolyte
• Backup Runtime:
• At full load (8000W): Approximately 5 minutes
• At half load (4000W): Approximately 15 minutes
• Communication Interface: USB, Serial, SmartSlot (for optional network management cards)
• Waveform Type: Sine wave
• Topology: Double-conversion online
• LCD Display: Provides real-time status updates, diagnostics, and configuration options
• Form Factor: Rackmount (6U)
• Dimensions: 10.5 x 17 x 30.98 inches (267 x 432 x 787 mm)
• Weight: 292 lbs (132.5 kg)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Certifications: ENERGY STAR, RoHS compliant
