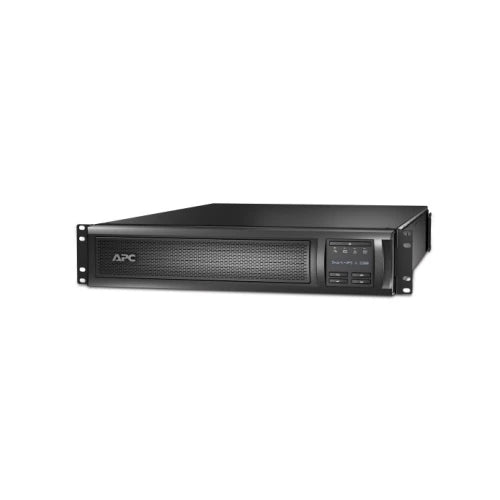

APC Smart-UPS X 2200VA Rack/Tower LCD UPS P/N: SMX2200RMLV2U

Description:

SMX2200RMLV2U UNINTERRUPTIBLE POWER SUPPLY SMART-UPS X LINE INTERACTIVE 2200 VA RACK / TOWER CONVERTIBLE U2 LCD 100-127 V 6 X 5-15R + 2X 5-2 0R NEMA SMARTSLOT EXTENDED RUNTIME The APC SMX2200RMLV2U Smart-UPS X 2200VA is a versatile and reliable uninterruptible power supply (UPS) designed to protect critical electronic equipment in both rack and tower configurations. This UPS delivers 2200VA/1980W of pure sine wave power, ensuring consistent and clean electricity for servers, storage devices, and networking hardware. Featuring an LCD interface for real-time status updates, the SMX2200RMLV2U offers advanced battery management with hot-swappable batteries, maximizing uptime and extending battery life. With multiple output connections and a network management card option, this UPS provides seamless power protection, making it an ideal choice for data centers, IT rooms, and other high-demand environments.

Technical Specifications:

• Manufacturer: APC (Schneider Electric)
• Model Number: SMX2200RMLV2U
• Form Factor: 2U Rack/Tower convertible
• Power Capacity: 2200VA / 1980W
• Input Voltage: 120V AC
• Input Plug Type: NEMA 5-20P
• Output Voltage: 120V AC
• Output Connections:
• 8 x NEMA 5-20R
• 2 x NEMA L5-20R
• Battery Type: Maintenance-free, sealed lead-acid (hot-swappable)
• Typical Recharge Time: 3 hours
• Runtime (at Half Load): 26 minutes (990W)
• Runtime (at Full Load): 9 minutes (1980W)
• LCD Display: Multi-functional, for status updates and control
• Network Management: Optional (with network management card)
• Communications Interface: Serial, USB
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 0% to 95% non-condensing
• Dimensions: 3.4 x 17 x 18.9 inches (85 x 432 x 480 mm)
• Weight: 96 lbs (43.5 kg)
• Certifications: ENERGY STAR qualified, RoHS compliant, UL listed
• Warranty: 3-year repair or replacement warranty, with a 2-year warranty on the battery
