APC Switched Rack PDU AP8932 0U 120V NEMA L5-30 Input / (24) NEMA 5-20 Outputs

Description:

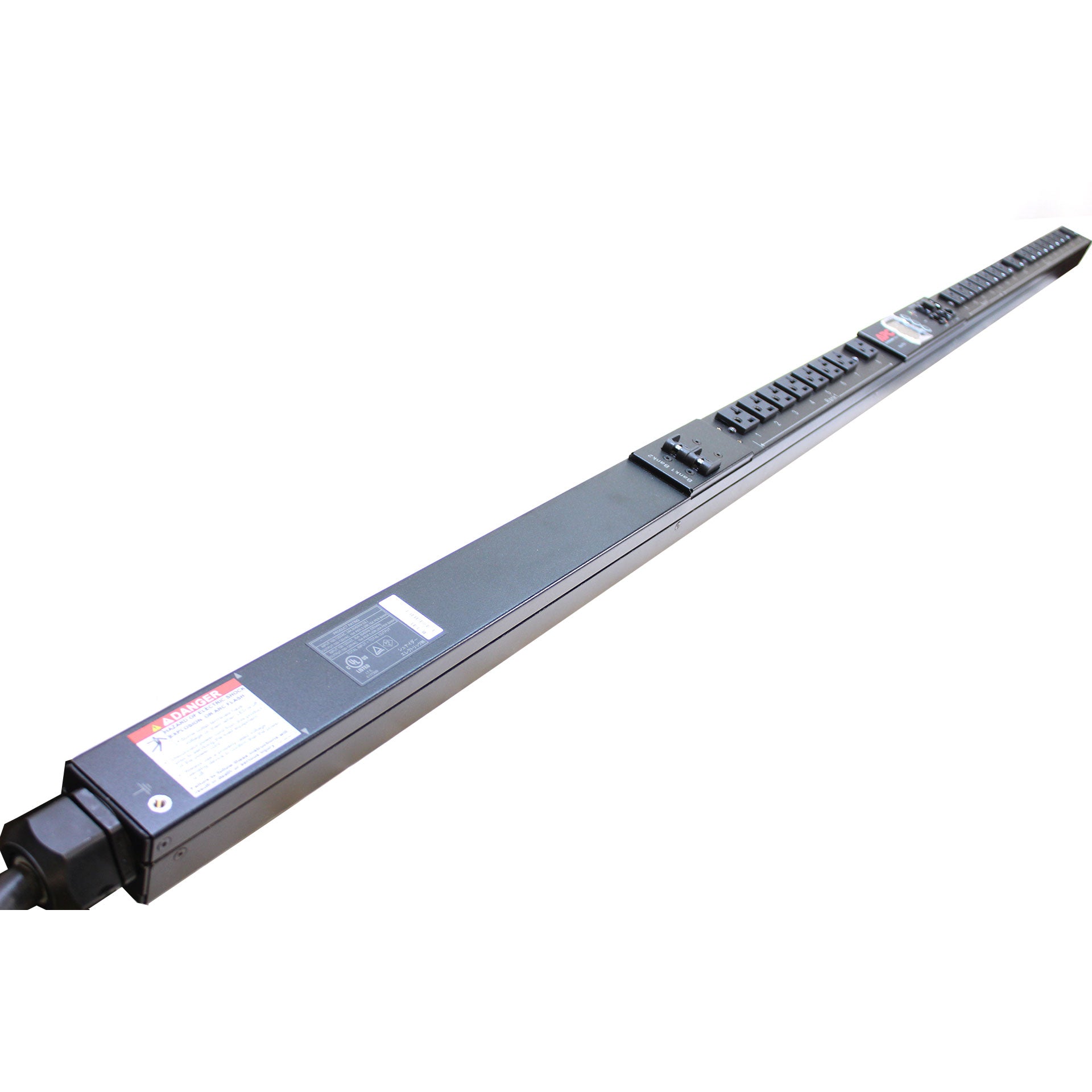

The APC AP8932 Switched Rack Power Distribution Unit (PDU) is used in rack-mounted power distribution systems to provide controlled and monitored power delivery to multiple IT and network devices. It features a 0U vertical rack design with a NEMA L5-30 input and twenty-four NEMA 5-20 outlets, allowing remote outlet switching and power management through a network interface. Commonly installed in data centers, server racks, telecommunications cabinets, and network infrastructure installations, this PDU enables efficient power distribution and device-level control. Maintenance teams and IT administrators use this unit for remote power management, equipment control, infrastructure upgrades, and replacement of existing rack power distribution units.

Applications:

The APC AP8932 switched rack PDU is used in IT and network infrastructure environments where controlled power distribution and remote outlet management are required. It is commonly applied in enterprise data centers, server rooms, telecommunications installations, and network equipment racks where administrators need to monitor power usage and remotely cycle or control connected devices to maintain system uptime.

Technical Specifications:

• Manufacturer Part Number (MPN): AP8932
• Product Type: Switched Rack Power Distribution Unit (PDU)
• Input Voltage: 120V AC
• Input Connection: NEMA L5-30P
• Output Connections: (24) NEMA 5-20R Outlets
• Form Factor: 0U Vertical Rack Mount
• Maximum Input Current: 30 A
• Network Interface: Ethernet (RJ45)
• Remote Management: Web, SNMP, Telnet, SSH
• Metering: Per-outlet switching and power monitoring
• Rack Compatibility: Standard 19-inch server racks
• Operating Temperature: 0 to 45 °C (32 to 113 °F)

Common Replacements:

• APC AP8959
• APC AP8941
• APC AP8832
