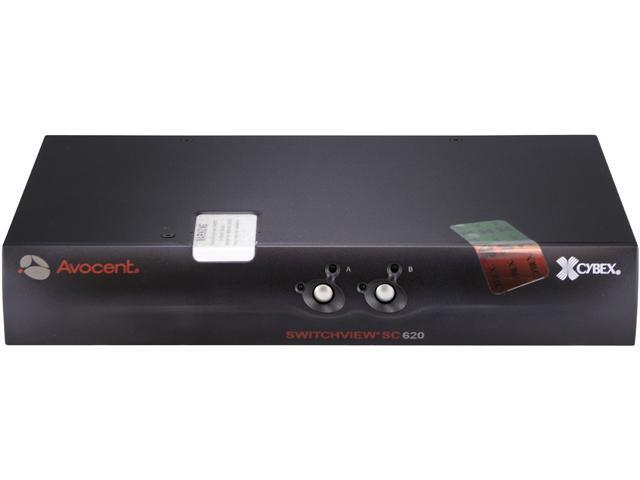

AVOCENT SC620-001 SwitchView SC, 1 User 2 Systems, USB, DVI-I (Dual Link), Audio

Description:

The Avocent SC620-001 Switch View SC is a secure KVM switch designed to allow a single user to control two computers while maintaining strict data security and isolation. Ideal for secure environments such as government and defense agencies, it supports dual-link DVI-I video, USB peripherals, and audio. The SC620-001 ensures that there is no unauthorized data transfer between the connected systems by incorporating advanced data protection features, such as unidirectional data flow and tamper-evident design, complying with the highest security standards.

Technical Specifications:

• Manufacturer: Avocent (Vertiv)
• Model Number: SC620-001
• Product Type: KVM Switch
• Number of Users: 1
• Number of Systems Supported: 2
• Connectivity: USB 2.0 for Keyboard and Mouse
• Video Support: DVI-I (Dual Link)
• Max Video Resolution: Up to 2560 x 1600 @ 60Hz (Dual Link DVI-I)
• Audio Support: Yes (Microphone and Speaker)
• Security Features:
• NIAP Common Criteria Protection Profile (PP) 3.0 Certified
• Unidirectional data flow with data diodes
• Tamper-evident design
• Port Switching: Push Buttons
• USB Peripheral Support: USB Keyboard and Mouse Only
• Power Supply: External AC Power Adapter
• Form Factor: Desktop
• Dimensions: 7.87 x 6.34 x 2.12 inches (200 x 161 x 54 mm)
• Weight: 2.43 lbs (1.1 kg)
• Certifications: FCC, CE, TAA Compliant
