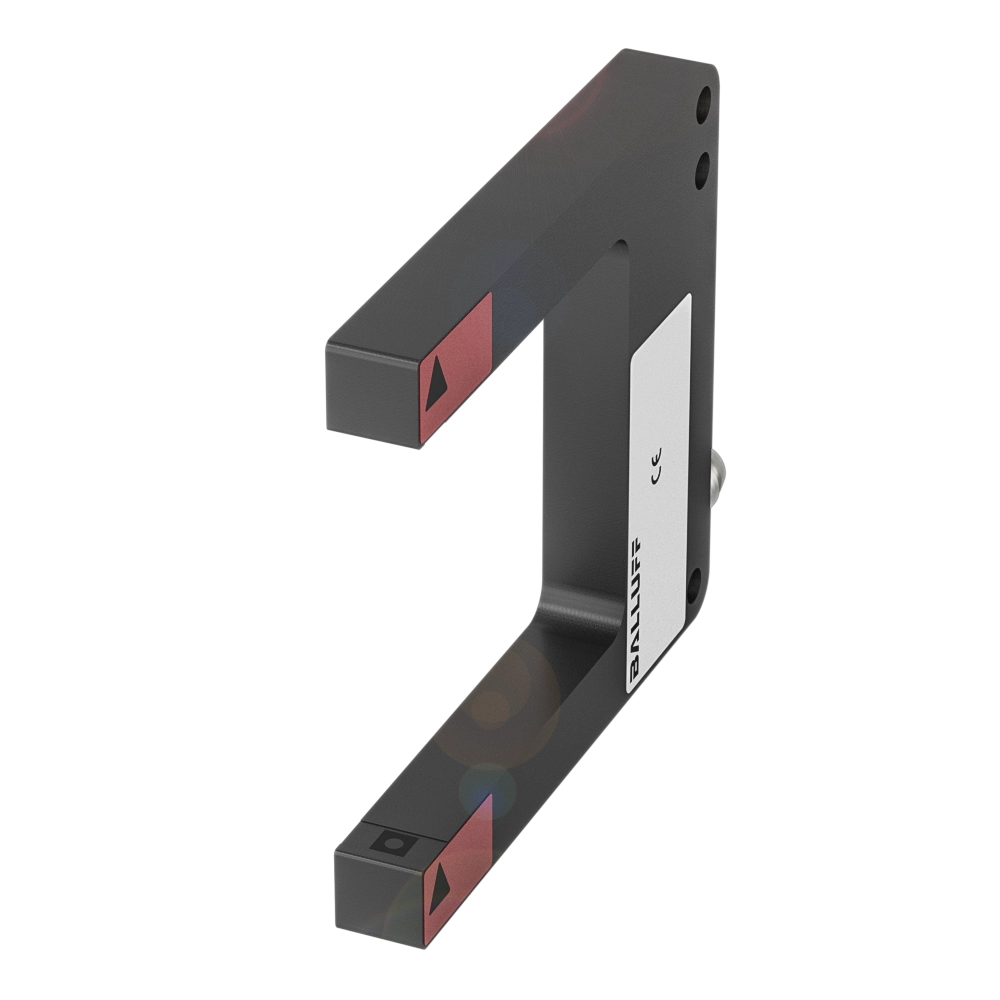

Balluff BGL001M BGL 50A-003-S49 Photoelectric Switch Sensor

Description:

BGL50A003S49 FORK SENSOR LIGHT EMITTER=LASER CONNECTION TYPE=CONNECTOR SWITCHING OUTPUT=PNP NORMALLY OPEN/NORMALLY CLOSED (NO/NC) BGL001M The Balluff BGL001M (BGL 50A-003-S49) is a high-performance photoelectric switch sensor, specifically designed for precise and reliable object detection. This fork-style sensor features a 50mm fork width, making it ideal for detecting small objects or label positioning in fast-moving automation processes. The sensor operates using an infrared light source, ensuring accurate detection in various lighting conditions. With a compact and robust design, the BGL001M is suitable for applications such as packaging, labeling, and general material handling in industrial environments.

Technical Specifications:

• Model: BGL001M (BGL 50A-003-S49)
• Type: Photoelectric Fork Sensor
• Fork Width: 50 mm
• Light Source: Infrared (850 nm)
• Output Type: PNP, Normally Open (NO)
• Switching Frequency: Up to 5 kHz
• Operating Voltage: 10-30V DC
• Current Rating: ≤ 100 mA
• Sensing Distance: Depends on the object being detected (within the fork width)
• Protection Class: IP67 (dust-tight and protected against temporary water immersion)
• Housing Material: Aluminum
• Connection Type: 2-meter PVC cable or M8 connector
• Operating Temperature Range: -5°C to +55°C (23°F to 131°F)
• Features:
• High-speed object detection with infrared light source
• Compact fork design for easy integration
• Resistant to ambient light interference
• LED indicator for operating status
• Durable and rugged aluminum housing
• Standards Compliance: CE, RoHS
