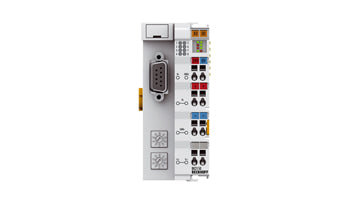

Beckhoff BK3150 PROFIBUS Bus Coupler BK3150

Description:

BK3150 PROFIBUS COUPLER COMPACT BUS COUPLER 128 BYTE INPUT AND OUTPUT 64 BUS TERMINALS K-BUS EXTENSION 12 MBAUD 24 VDC 70 MA -25 TO +60 DEGREE C IP20 The Beckhoff BK3150 is a PROFIBUS bus coupler designed to integrate Beckhoff’s I/O terminals into a PROFIBUS DP network. This module facilitates the connection between PROFIBUS master controllers (such as PLCs) and Beckhoff's modular I/O system, enabling reliable and efficient data exchange. The BK3150 supports up to 64 terminals and features dual PROFIBUS connectors for network expansion and redundancy. Its robust design and compact size make it suitable for a wide range of industrial applications, including machine automation and process control.

Technical Specifications:

• Model: BK3150
• Type: PROFIBUS Bus Coupler
• Supported Protocol: PROFIBUS DP (12 Mbit/s)
• Number of Terminals: Supports up to 64 Beckhoff I/O terminals
• Data Transmission: PROFIBUS DP communication for real-time data exchange
• PROFIBUS Ports: 2 (IN and OUT for network extension and redundancy)
• Connection Type:
• PROFIBUS: 9-pin D-sub connector (RS485)
• I/O terminals: Spring-loaded terminals for wiring
• Operating Temperature: -25°C to +60°C (-13°F to 140°F)
• Protection Class: IP20 (for control cabinet installation)
• Dimensions: 44 mm x 100 mm x 68 mm (WxHxD)
• Mounting: DIN rail mountable
• LED Indicators: Diagnostic LEDs for power, network status, and communication
• Features:
• Integrates Beckhoff I/O terminals into a PROFIBUS DP network
• Supports up to 64 I/O terminals for scalable system configurations
• Dual PROFIBUS ports for network expansion and redundancy
• High-speed PROFIBUS DP communication up to 12 Mbit/s
• Compact design for efficient space usage
• LED indicators for monitoring system status and communication
• Standards Compliance: CE, RoHS
