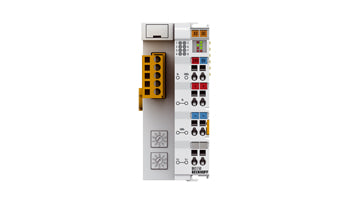

Beckhoff BK5150 PLC Module BK5150

Description:

BK5150 BUS COUPLER 24 VDC 64 64 I/O STATIONS AUTO DETECTION TRANSFER RATE UP TO 1 MBAUD 5 PIN OPEN STYLE CONNECTOR The Beckhoff BK5150 is a PROFIBUS DP slave bus coupler designed for the integration of Beckhoff I/O terminals into a PROFIBUS DP network. It allows seamless communication between the decentralized I/O system and a PROFIBUS master, such as a PLC or PC-based control system. This module acts as an interface between the field devices and the control system, enabling the transmission of both digital and analog signals. The BK5150 offers flexibility in connecting up to 64 terminals, supporting a wide variety of Beckhoff I/O terminals for modular automation solutions. Its compact design and DIN rail mounting make it suitable for space-constrained industrial environments.

Technical Specifications:

• Model: BK5150
• Type: PROFIBUS DP Slave Bus Coupler
• Supported Protocol: PROFIBUS DP (12 Mbit/s)
• Number of Terminals: Up to 64 terminals (with mixed digital and analog)
• Data Transmission: PROFIBUS DP communication for real-time data exchange
• Connection Type:
• PROFIBUS: 9-pin D-sub connector (RS485)
• I/O terminals: Spring-loaded terminals for wire connection
• Input Voltage: 24V DC
• Current Consumption:
• 70 mA (from PROFIBUS)
• 500 mA max (from 24V DC power supply)
• Operating Temperature: -25°C to +60°C (-13°F to 140°F)
• Protection Class: IP20 (for control cabinet installation)
• Dimensions: 64.5 mm x 100 mm x 68 mm (WxHxD)
• Mounting: DIN rail mountable
• LED Indicators: Diagnostic LEDs for power, status, and PROFIBUS communication
• Features:
• Supports up to 64 Beckhoff I/O terminals
• Fast PROFIBUS DP communication up to 12 Mbit/s
• Compact and modular design for easy system expansion
• Diagnostic LEDs for easy system status monitoring
• Supports both digital and analog terminals for flexible I/O configurations
• Spring-loaded terminals for secure and efficient wiring
• Standards Compliance: CE, RoHS
