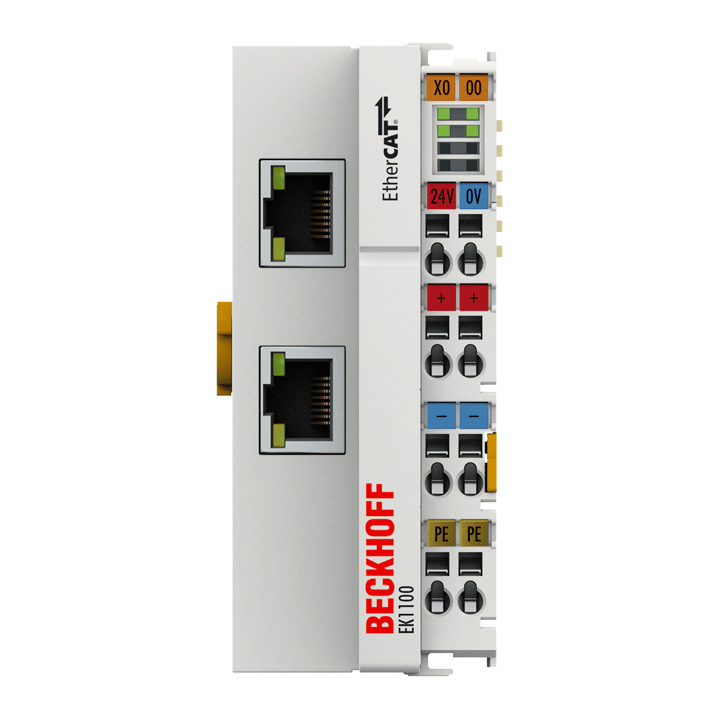

Beckhoff EK1100 Coupler Coupling of EtherCAT Terminals EK1100

Description:

EK1100 ETHERCAT COUPLER E-BUS TERMINAL RJ45 CONNECTION 24 VDC MAX 4.2 GB ADDRESSABLE I/O POINT -25 TO +60 DEGREES C IP20 The Beckhoff EK1100 EtherCAT Coupler is a gateway that connects the EtherCAT communication protocol to the modular I/O system of Beckhoff terminals. It enables seamless integration of up to 65,535 digital and analog I/O modules into an EtherCAT network, ensuring fast, real-time data exchange. The EK1100 efficiently converts EtherCAT telegrams into the internal terminal bus communication, allowing for easy extension and customization of automation systems. Its robust, compact design and DIN rail mounting make it suitable for use in various industrial automation applications, providing flexibility and scalability in system design.

Technical Specifications:

• Model: EK1100
• Type: EtherCAT Coupler
• Function: Coupling EtherCAT communication to Beckhoff I/O terminals
• Max Number of Terminals: Up to 65,535 terminals
• Data Transfer Rate: 100 Mbit/s (EtherCAT)
• EtherCAT Ports: 2 (IN and OUT)
• Bus Interface: Internal bus for Beckhoff EtherCAT terminals
• Power Supply: 24V DC
• Current Load: Max 2A (via power contacts)
• Connection Type: Spring-loaded terminals for power and bus wiring
• Operating Temperature: -25°C to +60°C (-13°F to 140°F)
• Protection Class: IP20 (for installation in control cabinets)
• Dimensions: 44 mm x 100 mm x 68 mm (WxHxD)
• Mounting: DIN rail mountable
• LED Indicators: For power and network status monitoring
• Features:
• Supports up to 65,535 connected EtherCAT terminals
• Compact, space-efficient design
• Dual EtherCAT ports for network extension and redundancy
• Fast real-time communication with 100 Mbit/s EtherCAT
• Spring-loaded terminals for quick installation
• LED indicators for easy diagnostic and status monitoring
• Standards Compliance: CE, UL, RoHS
