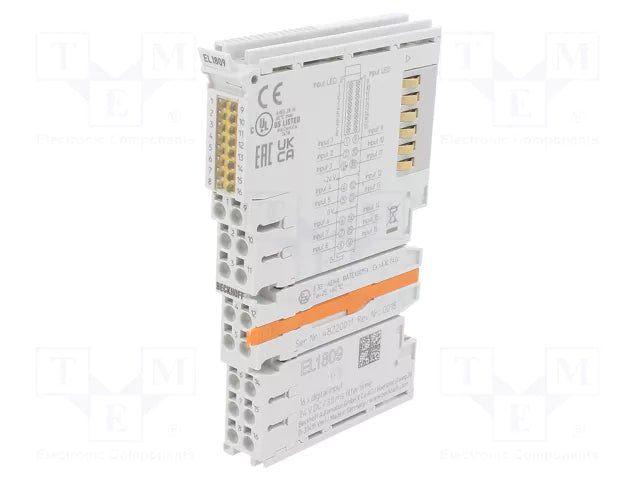

Beckhoff EL1809 EL 1809 Digital Input Module EL1809

Description:

The Beckhoff EL1809 Digital Input Module is an EtherCAT terminal used in industrial automation systems to collect digital input signals from field devices such as sensors, switches, and contact outputs. This module provides multiple digital input channels that transmit signal data through the EtherCAT network to a PLC or control system for real-time monitoring and machine control. Commonly installed in machine control panels, automated production lines, packaging equipment, and industrial process systems where reliable input signal acquisition is required. Automation engineers, system integrators, and maintenance technicians use the EL1809 module for system expansion, sensor signal integration, automation upgrades, and replacement of existing digital input terminals in Beckhoff EtherCAT control systems.

Applications:

The Beckhoff EL1809 digital input terminal is widely used in industrial automation environments where multiple digital signals must be monitored by a PLC or machine controller. It is commonly deployed in manufacturing machinery, conveyor systems, packaging equipment, and automated assembly lines to capture signals from limit switches, proximity sensors, push buttons, and safety devices. The module transfers input data through the EtherCAT network, enabling controllers to respond quickly to changes in machine status and process conditions.

Technical Specifications:

• Manufacturer Part Number (MPN): EL1809
• Brand: Beckhoff
• Product Type: EtherCAT Digital Input Terminal
• Number of Input Channels: 16 digital inputs
• Signal Type: 24 V DC digital input signals
• Communication Protocol: EtherCAT
• Bus System: Beckhoff EtherCAT terminal system
• Input Connection: Industrial terminal connections
• Mounting Type: DIN rail terminal module
• Application: Digital signal acquisition for PLC automation systems
• Operating Environment: Industrial machine control and automation panels

Common Replacements:

• Beckhoff EL1008 EtherCAT Digital Input Terminal
• Beckhoff EL1819 EtherCAT Digital Input Terminal
• Beckhoff EL1808 EtherCAT Digital Input Terminal
