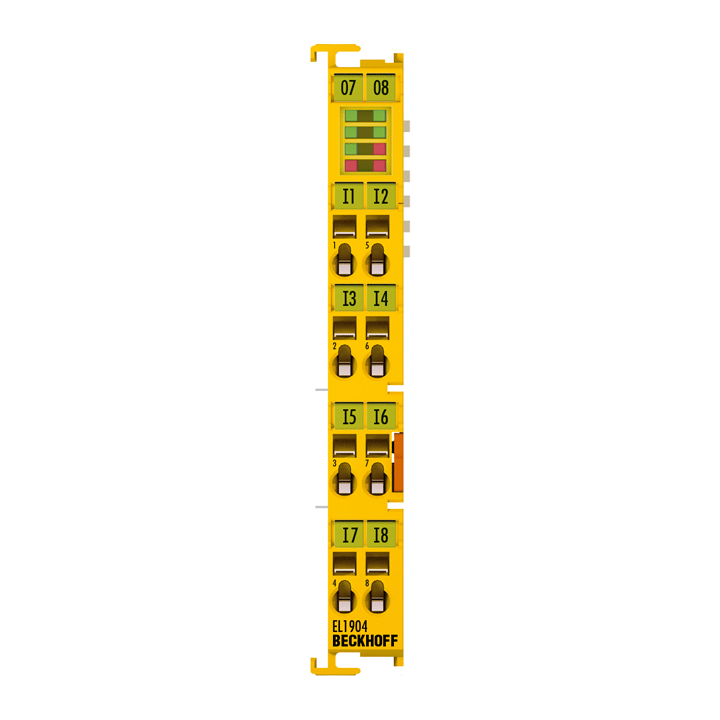

Beckhoff EL1904 4-channel Digital Input PLC Moudule

DESCRIPTION
The Beckhoff EL1904 is a TwinSAFE digital safety input terminal for use in EtherCAT systems. It features 4 safety-rated digital inputs, designed to connect safety sensors (e.g., emergency stop buttons, light curtains, or safety switches) with 24V DC input levels. As part of the TwinSAFE safety solution, the EL1904 integrates seamlessly into Beckhoff’s safety architecture and allows for flexible, software-based safety control within the EtherCAT I/O system.

TECHNICAL SPECIFICATIONS
Model: EL1904
System: EtherCAT
Type: TwinSAFE Digital Input Terminal
Number of Inputs: 4
Input Voltage: 24V DC (nominal)
Input Type: Safety-rated digital inputs
Diagnostic Features: Open-circuit detection, cross-circuit detection
Safety Category: SIL 3 (IEC 61508), PL e (EN ISO 13849-1)
Connection: Standard EtherCAT Terminal (no special wiring required)
Bus Interface: 1 x EtherCAT In, 1 x EtherCAT Out
Mounting: DIN rail, 12 mm wide
Operating Temperature: 0 to +55 °C
Approvals: CE, cULus, TÜV certified
