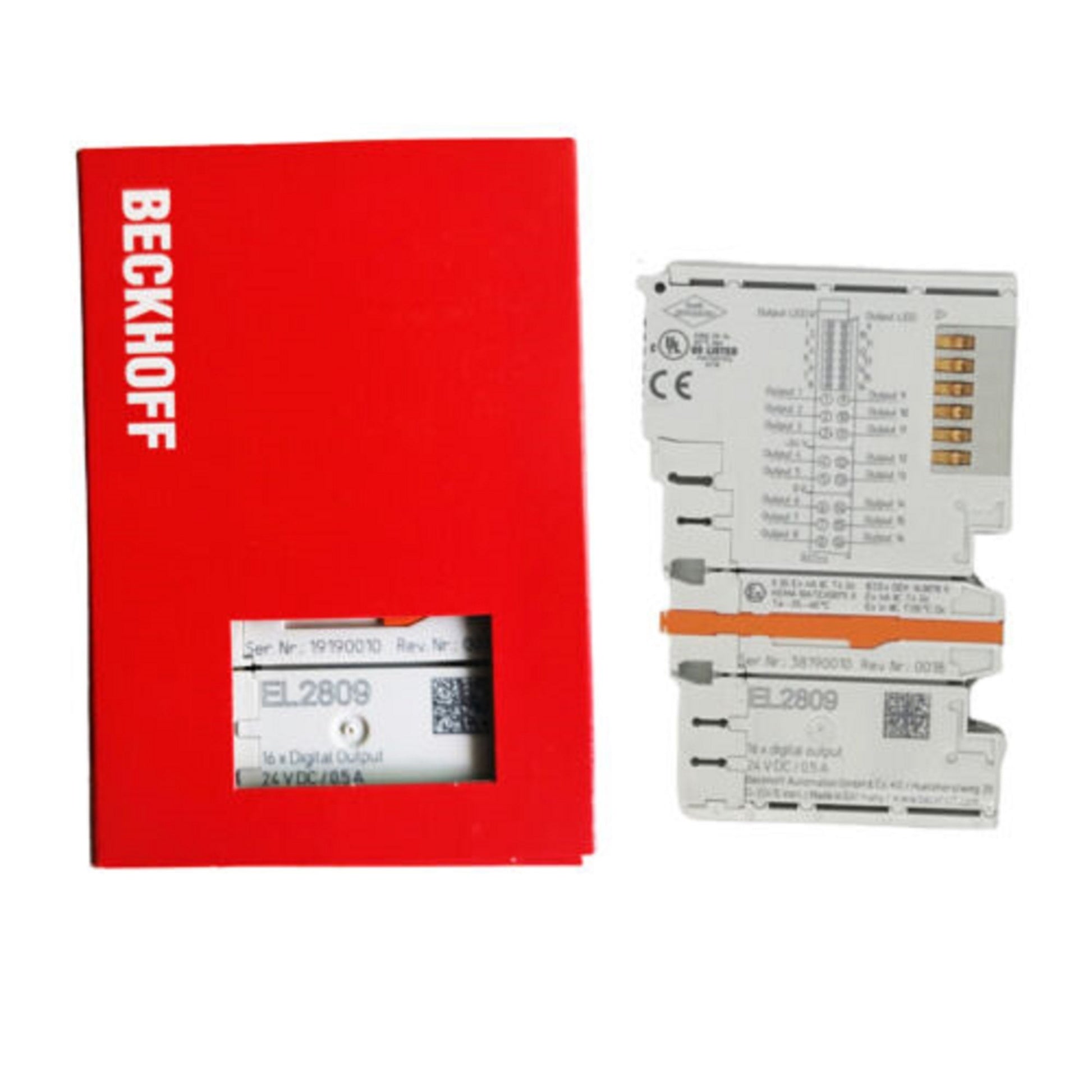

Beckhoff EL2809 Ether CAT Terminal 16-Ch Digital Output 24 VDC 0.5A EL2809

Description:

The Beckhoff EL2809 EtherCAT Terminal is a digital output module used in industrial automation systems to control external devices through 24 VDC switching signals over an EtherCAT network. This module provides sixteen digital output channels that transmit control signals from a PLC or automation controller to field devices such as relays, solenoids, indicator lights, and actuators. Commonly installed in machine control panels, automated production lines, packaging machinery, and industrial equipment where multiple output signals are required for device control. Automation engineers, system integrators, and maintenance technicians use the EL2809 terminal for machine installations, system expansion, control system upgrades, and replacement of existing digital output modules in Beckhoff EtherCAT automation systems.

Applications:

The Beckhoff EL2809 digital output terminal is widely used in industrial automation environments where PLC systems must control multiple devices through digital switching signals. It is commonly deployed in manufacturing machinery, conveyor systems, assembly lines, and packaging equipment to activate relays, control valves, operate indicator lights, and drive other automation components. The module communicates output signals through the EtherCAT network, enabling reliable and real-time device control within distributed automation systems.

Technical Specifications:

• Manufacturer Part Number (MPN): EL2809
• Brand: Beckhoff
• Product Type: EtherCAT Digital Output Terminal
• Number of Output Channels: 16 digital outputs
• Output Voltage: 24 VDC
• Output Current: 0.5 A per channel
• Communication Protocol: EtherCAT
• Bus System: Beckhoff EtherCAT terminal system
• Switching Type: Digital transistor outputs
• Mounting Type: DIN rail terminal module
• Application: Digital control of industrial devices in automation systems
• Operating Environment: Industrial machine control and automation panels

Common Replacements:

• Beckhoff EL2808 EtherCAT Digital Output Terminal
• Beckhoff EL2008 EtherCAT Digital Output Terminal
• Beckhoff EL2828 EtherCAT Digital Output Terminal
