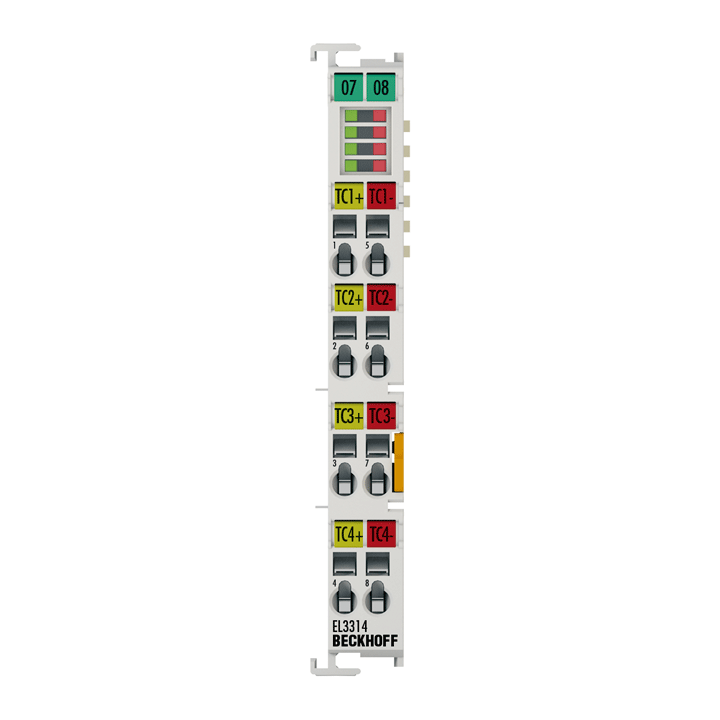

Beckhoff EL3314 EtherCAT Terminal PLC Module US EL3314

Description:

EL3314 THERMOCOUPLE INPUT TERMINAL 4-CHANNEL 16 BIT PRESET TO TYPE K WITH WIRE BREAKAGE DETECTION IP20 ENCLOSURE PROTECTION The Beckhoff EL3314 is an EtherCAT terminal module designed to provide 4 channels of analog current or voltage input for use in Beckhoff’s EtherCAT-based control systems. This module allows for precise measurement and acquisition of analog signals from sensors and other field devices. The EL3314 supports configurable input ranges and high-resolution analog-to-digital conversion, making it suitable for applications requiring accurate and reliable analog signal processing in various industrial settings.

Technical Specifications:

• Model: EL3314
• Type: Analog Input EtherCAT Terminal
• Number of Channels: 4 analog inputs
• Input Types:
• Voltage: 0-10V, ±10V, or other ranges as configured
• Current: 4-20 mA
• Resolution: 16-bit analog-to-digital conversion
• Accuracy: ±0.1% of full scale
• Sampling Rate: Up to 1 kHz per channel
• Data Transmission: EtherCAT protocol for real-time communication
• Connection Type: Spring-loaded terminals for input connections
• Operating Temperature: -25°C to +60°C (-13°F to 140°F)
• Protection Class: IP20 (for control cabinet installation)
• Dimensions: 12 mm x 100 mm x 68 mm (WxHxD)
• Mounting: DIN rail mountable
• LED Indicators: Status LEDs for power and communication
• Features:
• 4 independent analog input channels
• Supports multiple input ranges (voltage and current)
• High-resolution 16-bit analog-to-digital conversion
• Configurable input ranges for versatile application use
• Real-time data exchange via EtherCAT for accurate signal processing
• Compact design for space-efficient installation
• Spring-loaded terminals for secure and easy wiring
• Standards Compliance: CE, RoHS
