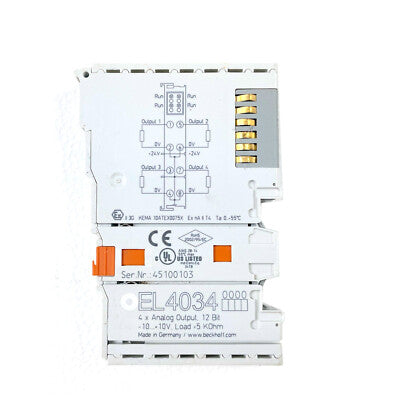

Beckhoff EL4034 4-Channel Analog Output Terminal -10...+10V, 12 Bit EL4034

Description:

The Beckhoff EL4034 Analog Output Terminal is an industrial EtherCAT I/O module designed to provide four analog voltage output channels for automation and process control systems. Supporting output signals from -10V to +10V with 12-bit resolution, this terminal enables precise control of field devices such as drives, actuators, and control valves. Maintenance teams, OEM machine builders, and system integrators use this module for system expansions, motion control applications, control panel upgrades, and replacement of existing analog output terminals in EtherCAT-based automation systems.

Applications:

The EL4034 analog output terminal is widely used in industrial automation systems requiring precise analog voltage control signals. Typical installations include machine automation platforms, motion control systems, packaging equipment, robotics cells, and manufacturing lines where PLC controllers must send analog signals to regulate speed drives, actuators, and process control equipment. Its integration with EtherCAT networks allows flexible and high-speed distributed I/O architectures.

Technical Specifications:

• Manufacturer: Beckhoff
• Part Number: EL4034
• Series: EtherCAT Terminal (EL Series)
• Module Type: Analog output terminal
• Number of Channels: 4 analog outputs
• Output Signal Range: -10V to +10V
• Resolution: 12-bit
• Interface: EtherCAT terminal bus
• Mounting Type: DIN rail EtherCAT terminal system
• Compatible Controllers: Beckhoff EtherCAT master controllers
• Operating Temperature: 0°C to 55°C

Common Replacements:

• Beckhoff EL4004
• Beckhoff EL4032
• Siemens 6ES7 332-5HD01-0AB0
