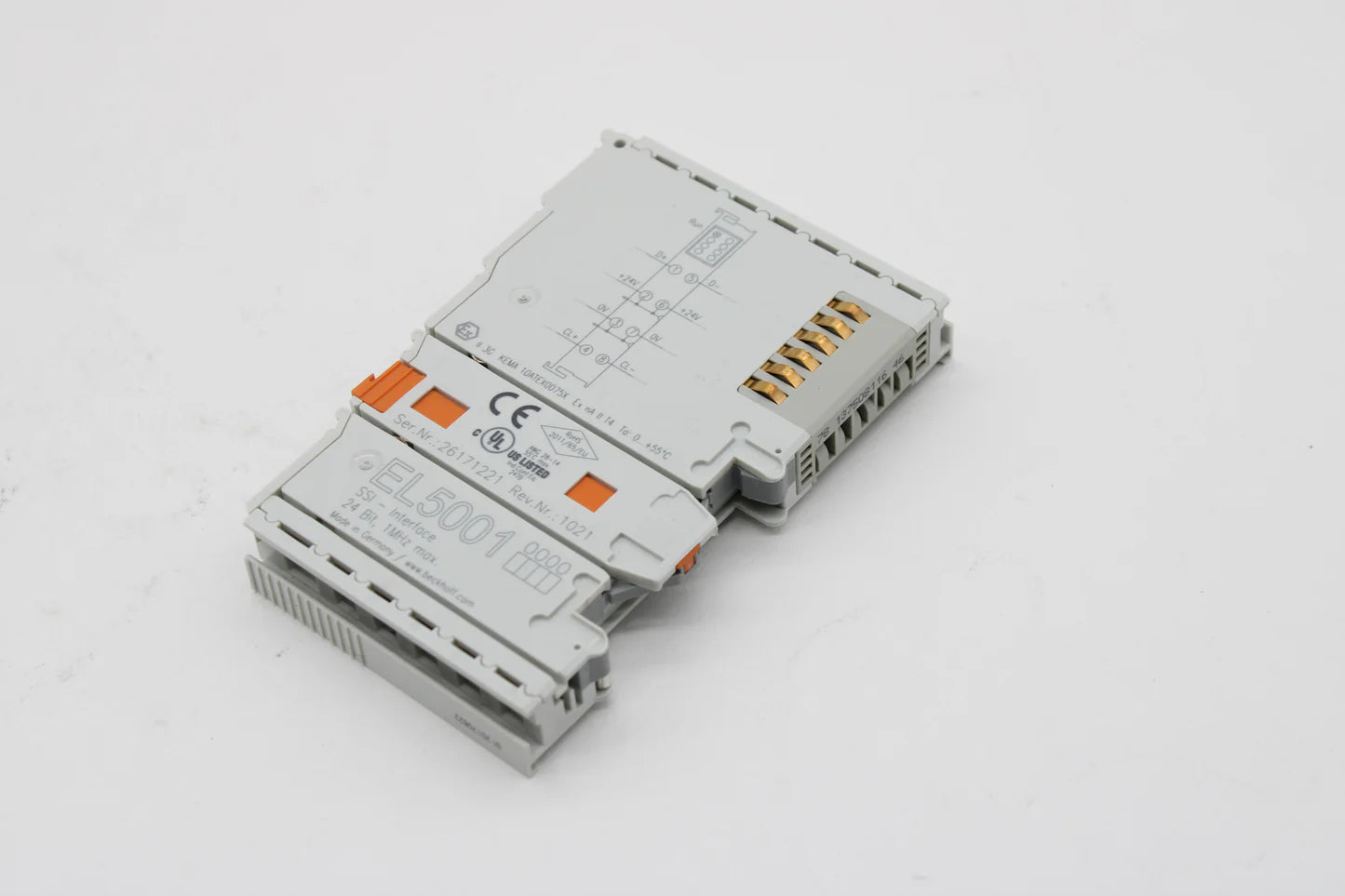

Beckhoff EL5001 SSI ENCODER SENSOR INTERFACE EtherCAT Terminal EL5001

Description:

The Beckhoff EL5001 SSI Encoder Sensor Interface EtherCAT Terminal is an industrial interface module used in automation systems to connect and process signals from SSI (Synchronous Serial Interface) encoders within EtherCAT-based control networks. This terminal enables precise position and motion feedback by converting encoder signals into data that can be transmitted through the EtherCAT fieldbus to a PLC or motion controller. Commonly installed in machine automation systems, CNC equipment, packaging machines, and motion control applications where accurate encoder feedback is required. Automation engineers, system integrators, and maintenance technicians use the EL5001 terminal for motion control integration, encoder signal acquisition, system upgrades, and replacement of existing encoder interface modules.

Applications:

The Beckhoff EL5001 SSI encoder interface terminal is used in industrial automation environments where high-precision position feedback from rotary or linear encoders is required for machine control. It is commonly deployed in CNC machinery, robotic systems, automated assembly lines, and packaging equipment to monitor shaft position, machine movement, and positioning accuracy. The terminal communicates encoder data through the EtherCAT network to PLC or motion controllers, enabling real-time motion control and precise machine operation.

Technical Specifications:

• Manufacturer Part Number (MPN): EL5001
• Brand: Beckhoff
• Product Type: SSI Encoder Interface EtherCAT Terminal
• Communication Protocol: EtherCAT
• Encoder Interface: SSI (Synchronous Serial Interface)
• Number of Encoder Channels: 1
• Data Transmission: Serial encoder data acquisition
• Supported Encoder Types: Absolute SSI encoders
• Bus System: Beckhoff EtherCAT terminal system
• Mounting Type: DIN rail terminal module
• Application: Position and motion feedback in automation systems
• Operating Environment: Industrial automation and motion control applications

Common Replacements:

• Beckhoff EL5002 SSI Encoder Interface Terminal
• Beckhoff EL5101 Incremental Encoder Interface Terminal
• Beckhoff EL5151 Encoder Interface Terminal
