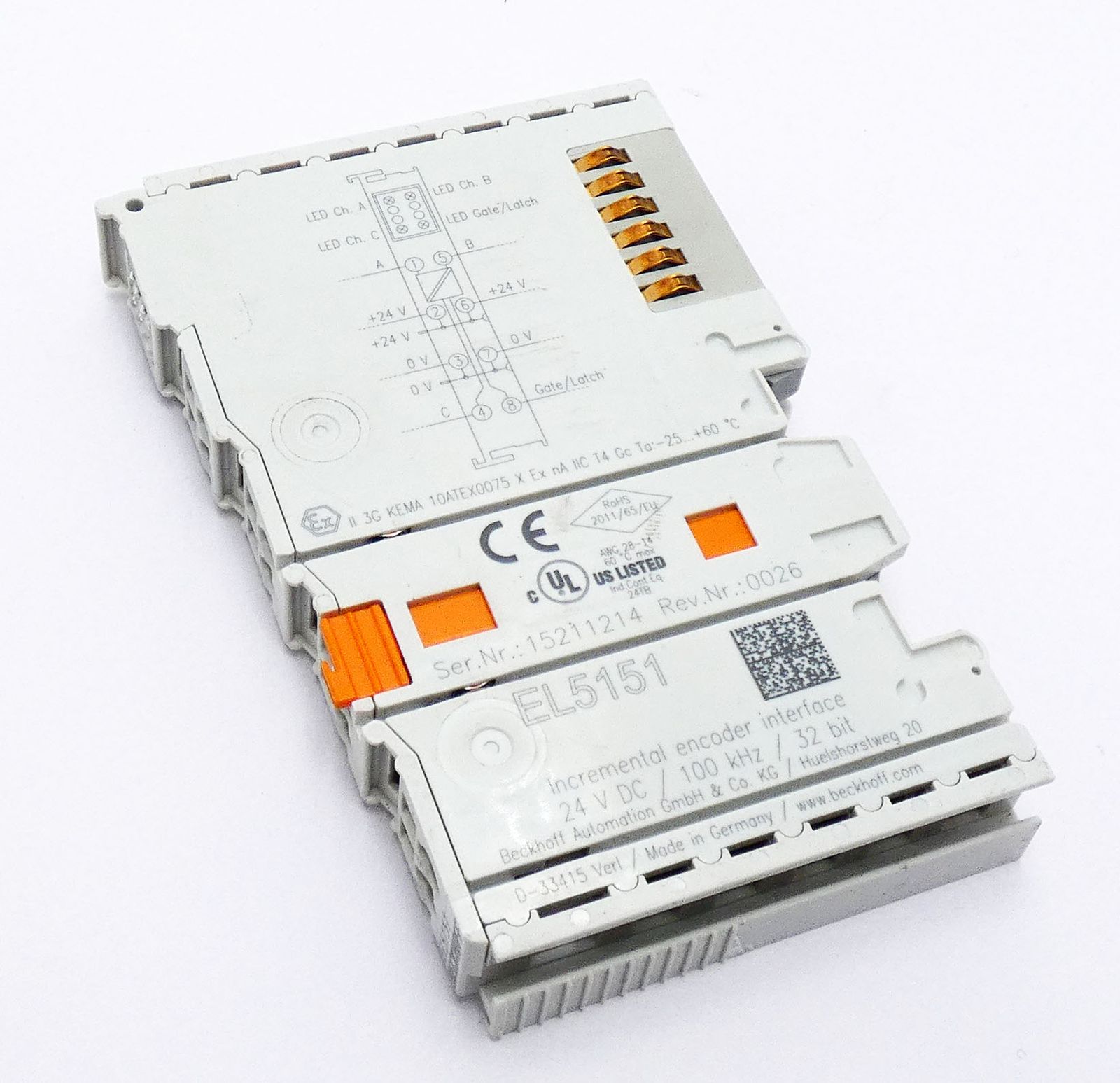

Beckhoff EL5151 Incremental Encoder Interface EL5151

Description:

The Beckhoff EL5151 Incremental Encoder Interface Terminal is an EtherCAT I/O module designed to connect and process signals from incremental encoders in industrial automation systems. This terminal enables precise position and speed measurement by capturing encoder signals and transmitting the data to EtherCAT-based controllers for real-time motion control. Maintenance teams, OEM machine builders, and system integrators use this module for motion control applications, machine automation upgrades, system expansions, and replacement of existing encoder interface modules in high-performance control systems.

Applications:

The Beckhoff EL5151 encoder interface terminal is widely used in industrial automation systems requiring accurate position and speed feedback. Typical installations include motion control systems, CNC machines, packaging equipment, robotics cells, conveyor systems, and manufacturing production lines where incremental encoders provide feedback for motor control, positioning, and synchronization tasks.

Technical Specifications:

• Manufacturer: Beckhoff
• Part Number: EL5151
• Series: EtherCAT Terminal (EL Series)
• Module Type: Incremental encoder interface terminal
• Encoder Type: Incremental encoder input
• Signal Inputs: A, B, and reference (Z) channels
• Interface: EtherCAT terminal bus
• Mounting Type: DIN rail EtherCAT terminal system
• Compatible Controllers: Beckhoff EtherCAT master controllers
• Measurement Function: Position and speed acquisition from encoder signals
• Operating Temperature: 0°C to 55°C

Common Replacements:

• Beckhoff EL5101
• Beckhoff EL5122
• Siemens 6ES7 138-4DF01-0AB0
