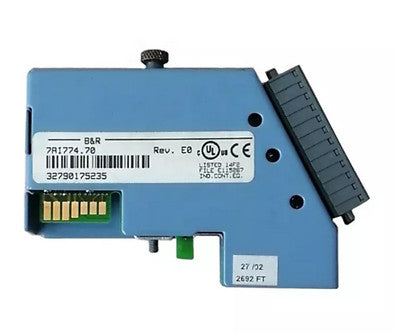

B&R 7AI774-70 Analog Input Module 7AI77470

Description:

7AI77470 ANALOG INPUT MODULE 4 INPUTS 0 TO 20 MA 12-BIT SCREW-IN MODULE The B&R 7AI774.70 is an analog input module designed for use with B&R’s automation systems. This module offers high precision and reliability in acquiring analog signals from various sensors and transducers. It provides 8 channels for analog inputs, allowing for the measurement of voltage or current signals. The 7AI774.70 module is ideal for applications requiring accurate and reliable analog signal processing, such as temperature monitoring, pressure measurement, and other process control tasks.

Technical Specifications:

• Model: 7AI774.70
• Type: Analog Input Module
• Number of Channels: 8 analog inputs
• Input Types: Voltage (0-10V, ±10V) or Current (0-20mA, 4-20mA)
• Input Resolution: 16-bit
• Sampling Rate: Typically up to 1 kHz per channel
• Input Voltage Range:
• Voltage: 0-10V, ±10V
• Current: 0-20mA, 4-20mA
• Accuracy: Typically ±0.1% of full scale
• Operating Temperature Range: 0°C to +55°C (32°F to 131°F)
• Degree of Protection: IP20 (protected against solid objects larger than 12.5 mm)
• Mounting Type: DIN rail mount
• Connection: Screw terminals or push-in connectors (depending on the version)
• Features:
• High-precision analog signal processing
• Diagnostic LEDs for status indication
• Configurable input ranges and scaling
• Robust design for industrial environments
• Easy integration with B&R automation systems
• Standards Compliance: CE, UL, and other relevant safety and performance standards
