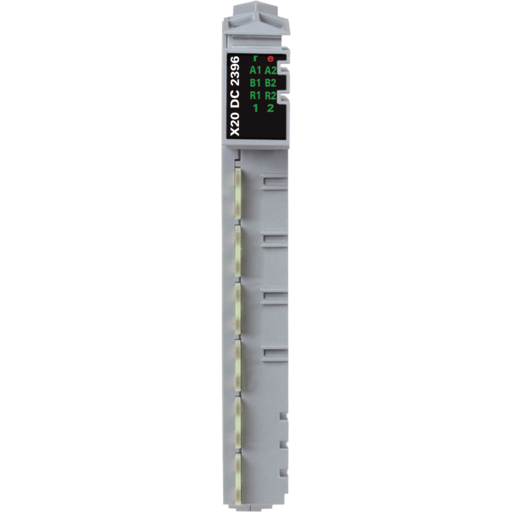

B&R X20DC2396 X20 DC 2396 PLC Module X20DC2396

DESCRIPTION
The B&R X20DC2396 is a hybrid digital I/O module from the X20 series, offering 14 digital inputs and 14 digital outputs in a compact format. Designed for decentralized automation systems, this module operates at 24VDC and supports both sourcing inputs and sourcing (positive-switching) outputs. It integrates seamlessly with B&R’s X20 CPU and I/O systems via the backplane, making it ideal for machines and systems requiring high-density, space-saving I/O.

TECHNICAL SPECIFICATIONS
Model: X20DC2396
Series: X20
Digital Inputs: 14 (24VDC, sink/sourcing configurable)
Digital Outputs: 14 (24VDC sourcing, PNP)
Output Current: Up to 0.5 A per channel
Input Filter Time: Configurable via software
Diagnostics: Per-channel diagnostics (short-circuit, overload, etc.)
Connection: X20 standard terminal blocks (e.g., X20TB)
Interface: Backplane bus via base module
Power Supply:
– I/O: 24VDC
– Logic: Supplied via X20 backplane
Mounting: DIN rail via X20 base module
Dimensions: 94 x 12.5 x 100 mm (W x H x D)
Protection Rating: IP20 (when used inside control cabinet)
