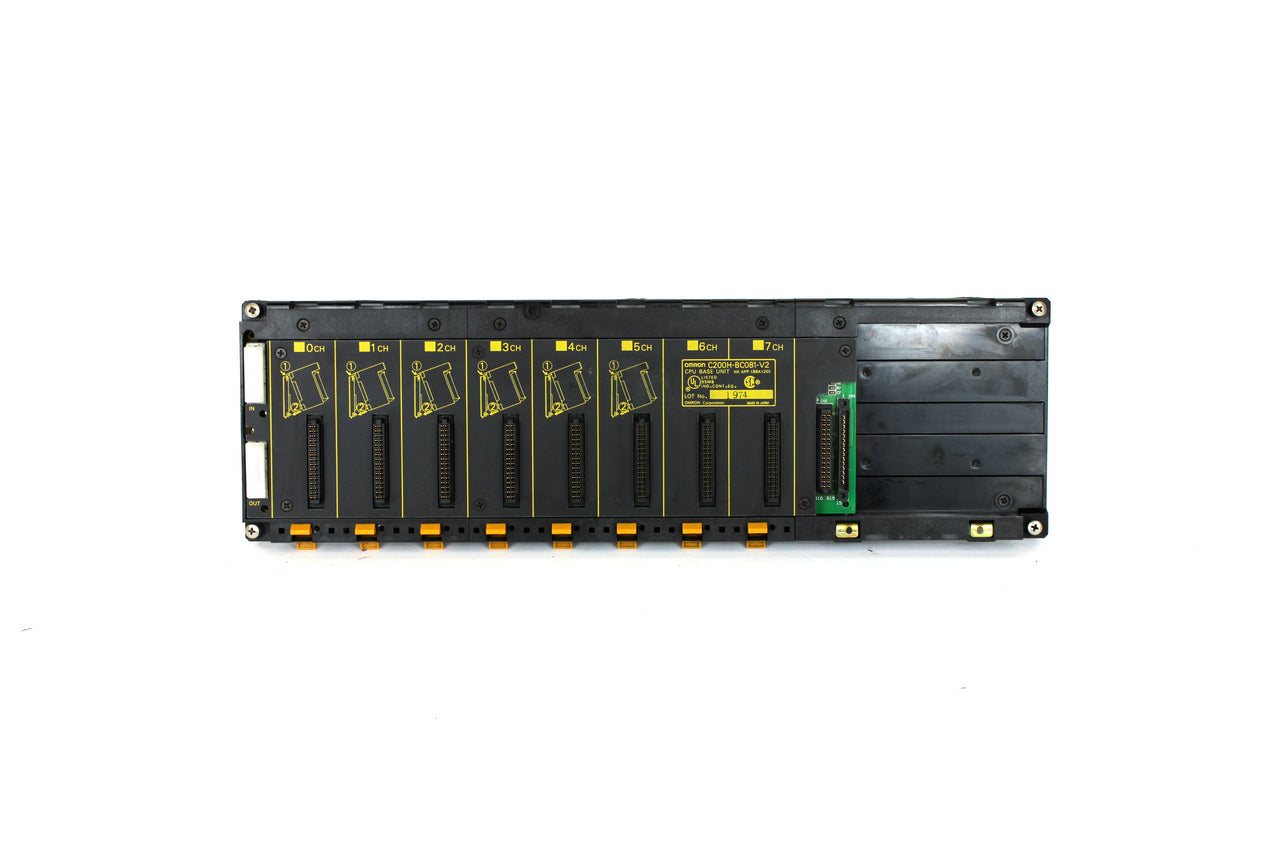

Omron C200H-BC081-V2 PLC Module C200HBC081V2

Description:

C200HBC081V2 RACK 8 SLOT CPU BASE UNIT SLAVE RACK BACKPLANE FOR USE WITH PLC MODULE The C200H-BC081-V2 is a versatile and reliable I/O expansion unit from Omron's C200H series, designed to enhance the capabilities of C200H programmable logic controllers (PLCs) by providing additional digital I/O points. This expansion unit features 8 relay output points, allowing for direct control of high-power devices such as motors, solenoids, and other actuators. With its robust construction and ease of integration, the C200H-BC081-V2 is well-suited for applications requiring reliable and scalable I/O expansion in industrial automation systems.

Technical Specifications:

• Model: C200H-BC081-V2
• Type: Digital I/O Expansion Unit
• I/O Configuration: 8 relay outputs
• Output Type: Relay (SPDT - Single Pole Double Throw)
• Output Voltage: 24V DC or 120/240V AC (depends on relay rating)
• Output Current: 2A (per relay), 5A (total for all relays)
• Contact Rating: 2A at 250V AC, 2A at 30V DC
• Response Time: Mechanical relay contact switching time
• Mounting Type: Directly mounts on C200H series PLC racks
• Dimensions (W x H x D): 90 x 90 x 80 mm
• Weight: Approximately 250 g
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
• Compliance: RoHS compliant
