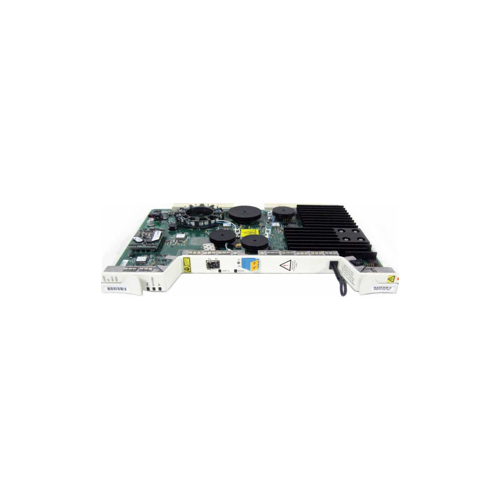

Cisco 15454-MR-L1-54.1 Multi-Rate TXP 100M-2.5G 100G 4ch 1554.13-1556.55

Description:

The Cisco 15454-MR-L1-54.1 Multi-Rate Transponder Module is used in telecommunications and optical networking systems to provide high-speed optical signal conversion and transport across fiber networks. This module is designed for the Cisco ONS 15454 optical transport platform and supports multi-rate transmission from 100 Mbps up to 2.5 Gbps across DWDM optical channels. It converts client signals into optical wavelengths for long-distance transmission across fiber infrastructure. Network engineers and telecom operators commonly use this module to expand optical transport capacity, replace failed transponder cards, and maintain high-reliability SONET and DWDM backbone networks.

Applications:

The Cisco 15454-MR-L1-54.1 module is widely used in telecommunications environments including carrier backbone networks, metro optical rings, ISP infrastructure, long-haul fiber transport systems, and enterprise optical transport networks where reliable multi-rate optical signal transmission is required for high-capacity data communication.

Technical Specifications:

• Manufacturer: Cisco
• Model: 15454-MR-L1-54.1
• Product Type: Multi-Rate Optical Transponder Module
• Platform Compatibility: Cisco ONS 15454 Optical Transport System
• Supported Data Rates: 100 Mbps to 2.5 Gbps
• Optical Channels: 4 channels
• Optical Wavelength Range: 1554.13 – 1556.55 nm
• Transmission Type: DWDM optical transmission
• Interface Type: Optical transport interface module
• Installation Type: Slot-based module for ONS 15454 chassis
• Network Compatibility: SONET / SDH optical networks
• Application Category: Optical transport networking hardware
• Function: Converts client data signals to optical wavelengths for long-distance fiber transmission

Common Replacements:

• Cisco 15454-MR-L1-50.1
• Cisco 15454-MR-L1-58.1
• Cisco 15454-MRP-L1-54.1
