Cisco 15454-OC48LR1550 Cerent ONS 1550nm OC48 Interference LR 1550 15454OC48LR1550

Description:

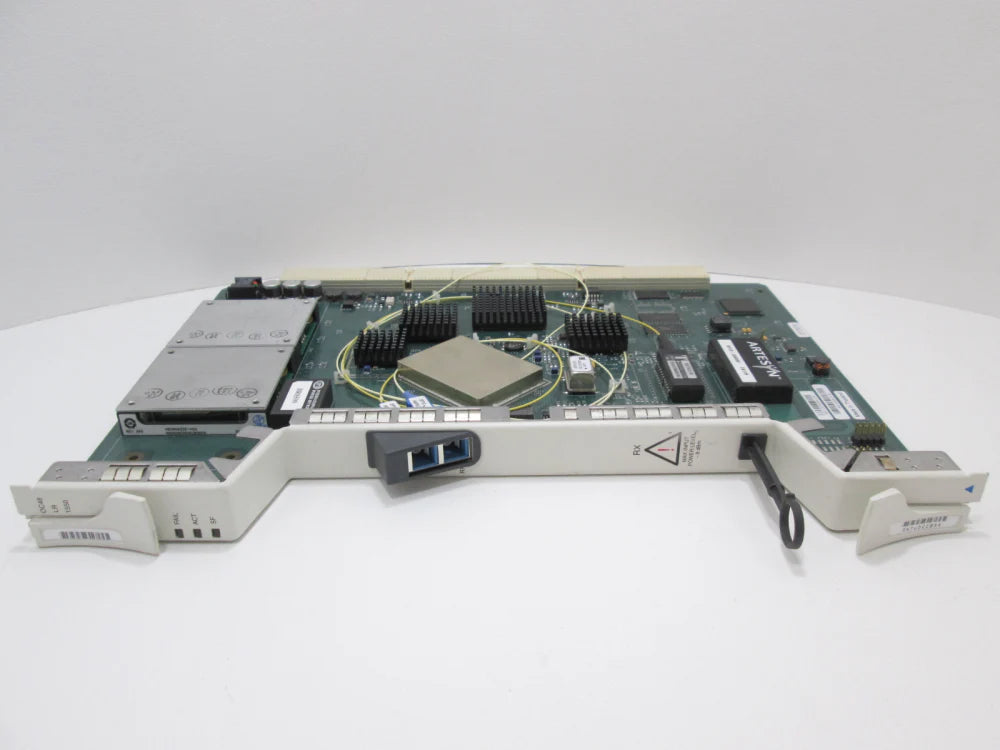

The 15454-OC48LR1550 by Cisco is an OC-48/STM-16 long-reach optical interface card designed for use with the Cisco ONS 15454 Multiservice Transport Platform. Operating at a wavelength of 1550 nm, this card supports transmission over single-mode fiber up to 80 km without amplification. It is suitable for SONET/SDH transport networks and provides high-speed connectivity with low latency and high reliability, making it ideal for carrier-grade and enterprise optical backbone infrastructures.

Technical Specifications:

Manufacturer: Cisco
Model: 15454-OC48LR1550
Type: OC-48/STM-16 Long-Reach Optical Interface Card
Platform: Cisco ONS 15454
Line Rate: 2.488 Gbps
Wavelength: 1550 nm
Reach: Up to 80 km over single-mode fiber
Interface Type: LC optical connectors
Optical Budget: Typically 28 dB
Protocols Supported: SONET OC-48, SDH STM-16
Form Factor: Plug-in module
Mounting: For use in ONS 15454 chassis
Operating Temperature: 0°C to 55°C
Power: Supplied via backplane from ONS chassis
Compliance: Telcordia, NEBS, GR-253-CORE
Application: Long-haul SONET/SDH optical transport
