Cisco 15454-OPT-EDFA-17 ENHANCED C-BAND 96 CHANNEL LOW COST 15454OPTEDFA17

Description:

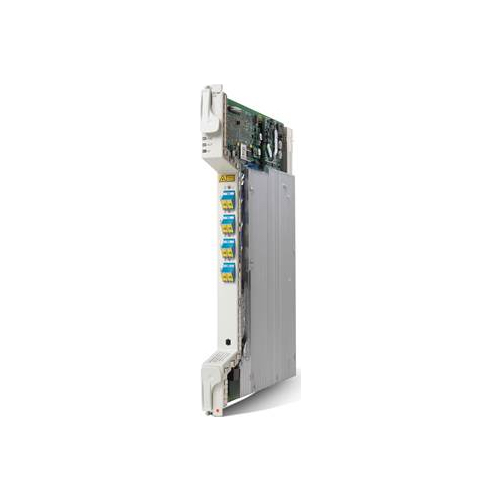

The Cisco 15454-OPT-EDFA-17 is an optical amplifier module designed for use with the Cisco ONS 15454 Multiservice Transport Platform (MSTP). This EDFA (Erbium-Doped Fiber Amplifier) boosts optical signal strength to extend transmission distances in dense wavelength-division multiplexing (DWDM) networks. With a nominal output power of 17 dBm, the module is ideal for use as a booster or inline amplifier in long-haul and metro optical transport applications. It integrates seamlessly into the ONS 15454 chassis and supports carrier-class optical performance with advanced monitoring and control features.

TECHNICAL SPECIFICATIONS:

Model: 15454-OPT-EDFA-17
Type: Optical Amplifier Module (EDFA)
Platform Compatibility: Cisco ONS 15454
Output Power: +17 dBm
Input Power Range: –25 dBm to +4 dBm
Wavelength Range: C-band (1528–1563 nm)
Amplifier Type: Erbium-Doped Fiber Amplifier (EDFA)
Gain Range: Typically up to 25 dB
Connectors: LC/UPC (optical)
Power Supply: Provided by the ONS 15454 chassis
Monitoring: Optical power monitoring, amplifier status, temperature
Management: Integrated with Cisco Transport Controller (CTC)
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Cooling: Chassis-integrated airflow
Certifications: NEBS Level 3, CE, FCC, UL
