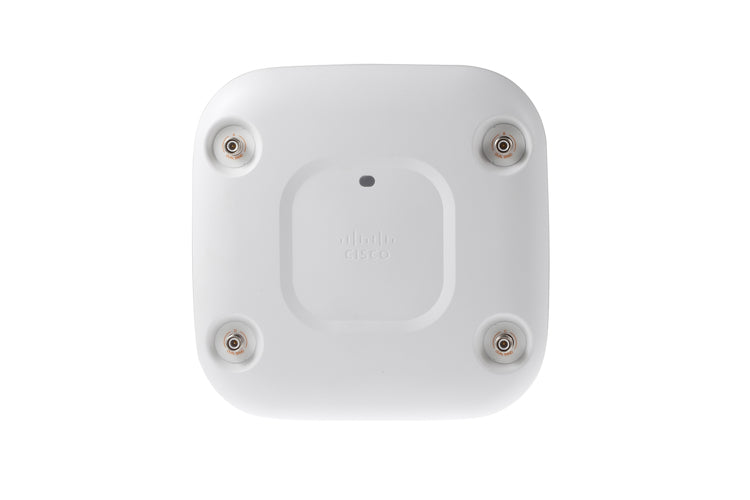

Cisco AIR-CAP2702E-B-K9 Aironet Access Point 2700 Series AIRCAP2702EBK9

Description:

The Cisco AIR-CAP2702E-B-K9 Aironet 2700 Series Access Point is used in enterprise wireless network infrastructures to provide high-performance dual-band Wi-Fi connectivity for business environments. This access point supports IEEE 802.11ac wireless standards and integrates with centralized wireless LAN controllers to deliver reliable, high-speed wireless coverage for large-scale network deployments. Designed to support high-density client environments, it helps organizations maintain stable wireless connectivity, improved network performance, and secure communication across multiple devices. Network administrators and system integrators commonly deploy this access point for repair, retrofit, expansion, or replacement in enterprise wireless LAN systems and managed IT infrastructures.

Applications:

The Cisco Aironet AIR-CAP2702E-B-K9 access point is commonly deployed in enterprise wireless networks across corporate offices, educational campuses, healthcare facilities, retail environments, and public venues where reliable high-speed Wi-Fi coverage is required. It is typically installed on ceilings or walls in office spaces, conference rooms, warehouses, and campus buildings to provide wireless connectivity for laptops, mobile devices, VoIP systems, and wireless enterprise applications while supporting centralized wireless network management.

Technical Specifications:

• Manufacturer: Cisco Systems
• Manufacturer Part Number (MPN): AIR-CAP2702E-B-K9
• Product Type: Wireless Access Point
• Series: Cisco Aironet 2700 Series
• Wireless Standard: IEEE 802.11a/b/g/n/ac
• Frequency Bands: Dual-band 2.4 GHz and 5 GHz
• Maximum Data Rate: Up to 1.3 Gbps (802.11ac)
• Antenna Type: External antenna connectors (E model)
• MIMO Technology: 3×4 MIMO with three spatial streams
• Ethernet Port: 1 × 10/100/1000 Gigabit Ethernet
• Power Options: Power over Ethernet (PoE+) or external power supply
• Wireless Controller Requirement: Controller-based deployment (CAP model)
• Mounting Options: Ceiling or wall mount
• Operating Temperature: 0°C to 40°C
• Security: WPA, WPA2, 802.1X authentication support

Common Replacements:

• Cisco AIR-CAP2802E-B-K9 Aironet 2800 Series Access Point
• Cisco AIR-AP1832I-B-K9 Aironet 1830 Series Access Point
• Cisco Catalyst C9115AXI-B Wi-Fi 6 Access Point
