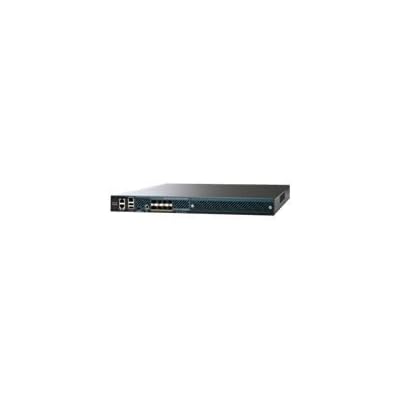

Cisco AIR-CT5508-500-K9 5500 Wireless Controller 500 Access Point Licenses AIRCT5508500K9

Description:

The Cisco AIR-CT5508-500-K9 is a high-capacity wireless LAN controller designed for medium to large enterprise networks. It supports up to 500 access points and 7,000 wireless clients, delivering centralized control, high performance, and advanced security for 802.11n and 802.11ac networks. Equipped with 8 Gigabit SFP ports and robust RF management features like Cisco CleanAir, it ensures efficient and scalable wireless deployments. Its 1RU rack-mountable design and modular architecture make it ideal for campus and large branch environments requiring reliable and secure wireless connectivity.

TECHNICAL SPECIFICATIONS:

Manufacturer: Cisco Systems
Series: Cisco 5500 Series Wireless Controllers
Model Number: AIR-CT5508-500-K9
Access Point Support: Up to 500 APs
Client Support: Up to 7,000 clients
Uplink Ports: 8 x 1 Gigabit SFP ports
Management Ports: 1 x Gigabit RJ-45 service port, 1 x Gigabit RJ-45 redundant port, 1 x RJ-45 console port, 1 x mini-USB console port
USB Ports: 2 x USB Type-A
Wireless Standards: 802.11a/b/g/d/e/h/k/n/r/u/w/ac
Expansion Slot: 1 slot for optional modules
Security Features: Cisco CleanAir, secure CAPWAP (DTLS), WPA/WPA2, 802.1X, AES, TKIP, IPsec, TLS
Management Options: Web GUI (HTTP/HTTPS), CLI via SSH/Telnet, SNMP v1/v2c/v3, RMON, Syslog
Power Input: 100–240 VAC, 50/60 Hz
Power Consumption: Maximum ~115 W
Heat Dissipation: Approx. 392 BTU/hr
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Humidity: 10% to 95% non-condensing
Form Factor: 1 RU, rack-mountable
Dimensions (HxWxD): Approx. 1.75 x 17.3 x 21.2 in (4.45 x 44 x 53.9 cm)
Weight: Approx. 20 lb (9.1 kg) with dual power supplies
