Cisco ASR1002 ASR1000-ESP5 ASR1002-5G/K9 Dual ASR1002-PWR-AC ASR10025G/K9

Description:

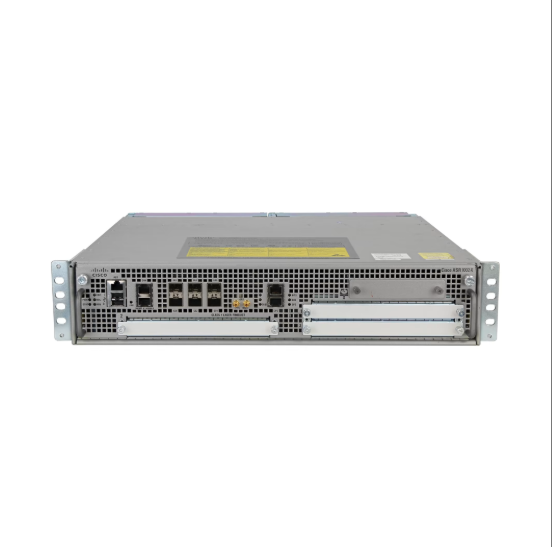

The Cisco ASR1002-5G/K9 Aggregation Services Router is used in enterprise and service provider edge networks to deliver high-performance routing with integrated embedded services processing. Commonly installed in telecommunications infrastructures, enterprise WAN edge deployments, and data center edge networks requiring reliable high-throughput routing and traffic management. Maintenance teams, network administrators, and system integrators use this router for network expansion, infrastructure upgrades, or replacement of legacy edge routing platforms.

Applications:

The Cisco ASR1002-5G/K9 Router is deployed in enterprise and service provider network environments to provide secure and scalable WAN connectivity, advanced routing services, and high-performance traffic processing. It is commonly used in telecommunications networks, large enterprise campuses, and internet service provider infrastructures where reliable data routing and high bandwidth capacity are required. Network administrators and system integrators implement this router to support WAN aggregation, network edge routing, and secure data transmission across large-scale network infrastructures.

Technical Specifications:

• Manufacturer Part Number (MPN): ASR1002-5G/K9
• Brand: Cisco
• Product Type: Aggregation Services Router
• Series: Cisco ASR 1000 Series
• Embedded Services Processor: ASR1000-ESP5
• Throughput Capacity: Up to 5 Gbps system throughput
• Ethernet Interfaces: 4 × Gigabit Ethernet ports
• Expansion Slots: 3 × Shared Port Adapter (SPA) slots
• Memory: 8 GB DRAM (expandable depending on configuration)
• Power Supply: Dual AC power supplies (ASR1002-PWR-AC)
• Redundancy Support: Yes, supports redundant power configuration
• Management Interfaces: Console port, auxiliary port, and management Ethernet port
• Routing Protocols: BGP, OSPF, EIGRP, IS-IS
• Deployment Type: Enterprise WAN edge and service provider aggregation networks

Common Replacements:

• Cisco ASR1001-X Aggregation Services Router
• Cisco ASR1002-X Aggregation Services Router
• Cisco ASR1004 Aggregation Services Router
