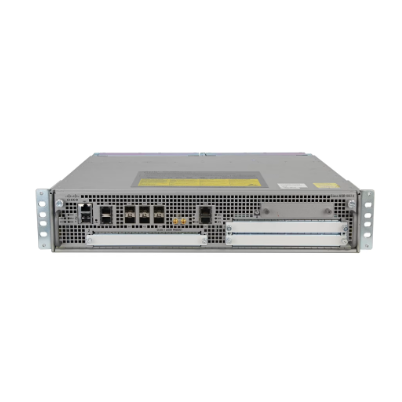

Cisco ASR1002-X Services Router Dual ASR1002-PWR-AC

Description:

The Cisco ASR1002-X is a compact, high-performance Aggregation Services Router designed for enterprise and service provider edge applications. It features integrated routing, security, and network services including NAT, VPN, and firewall, all in a 2U rackmount chassis. With built-in 1-Gigabit SFP ports and software-upgradable throughput from 5 Gbps up to 36 Gbps, the ASR1002-X offers flexible scalability and investment protection for growing network demands.

TECHNICAL SPECIFICATIONS:

Manufacturer: Cisco Systems
Model Number: ASR1002-X
Series: ASR 1000
Form Factor: 2U rack-mountable
Integrated Ports: 6 × 1G SFP Ethernet
SPA Slots: 3 × half-height Shared Port Adapter (SPA) slots
Processor: Quad-core route processor (built-in)
Forwarding Throughput: 5 Gbps (default); upgradable to 10, 20, or 36 Gbps via license
Memory: 4 GB DRAM (upgradable to 8 GB or 16 GB)
Storage: 8 GB flash (standard), optional 160 GB hard disk
Encryption Throughput: Up to 4 Gbps (IPsec)
Power Supply: Dual AC or DC, hot-swappable (1+1 redundant)
Cooling: Internal fan
Console Ports: RJ-45 and mini-USB
Management Port: 1 × 10/100/1000 Mbps Ethernet
USB Ports: 2 × USB 2.0
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% (non-condensing)
Dimensions (H x W x D): 3.5 x 17.2 x 18.15 in (88.9 x 437.4 x 461 mm)
Weight: Approx. 38.25 lb (17.36 kg)
